KREPIN
HDPE Krepin is a bottom filter and bleed element made of high density polyethylene (PE100) material, especially used to provide filtration in liquid systems. It is usually installed at the ends of pipes, preventing solid particles from entering the pipe and ensuring healthy operation of the system. HDPE crepins, which are resistant to environmental factors and chemicals, stand out with their long-lasting and stainless structure.
HDPE Crepin – Filtration Head / Bottom Filter Element
Areas of Use:
-
Water treatment systems
-
Agricultural irrigation systems
-
Rainwater collection lines
-
Industrial drainage systems
-
Treatment plants and biological ponds
-
As a particle trap at the inlet or outlet points of HDPE pipe systems
Advantages:
-
High impact and chemical resistance thanks to PE100 raw material
-
Easy assembly thanks to its lightweight structure
-
Resistance to corrosion and UV radiation
-
Leak-proof and safe filtration
-
Can be backwashed or cleaned, reusable
-
Production option according to different pipe diameters and system requirements
Why Choose HDPE Crepe?
HDPE Crepin is an ideal protective equipment to prevent clogging and damage to the system. It can be used for many years without the risk of corrosion and decay, especially in systems in contact with water. It keeps the water and liquid clean and reduces maintenance costs.

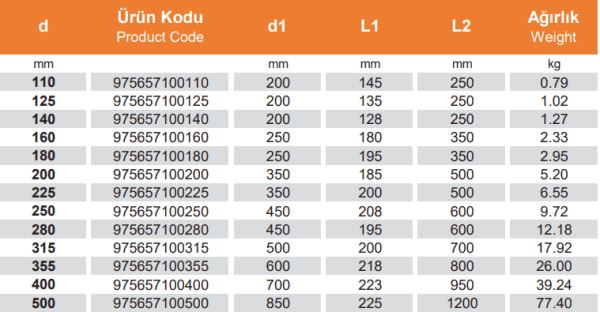

| SIRA | ÜRÜN KODU | ÇAP d1 [mm] | d [mm] | L [mm] | L1 [mm] | e [mm] | e1 [mm] | AĞIRLIK [kg] | KOLİ ADEDİ | KOLİ EBATI |
|---|---|---|---|---|---|---|---|---|---|---|
| SEQ | PRODUCT CODE | SIZE d1 [mm] | d [mm] | L [mm] | L1 [mm] | e [mm] | e1 [mm] | WEIGHT [kg] | IN A PARCEL | PCS PRICE |
| 1 | 975657100110 | 110 | 200 | 250 | 145 | 5 | 4.5 | 0.79 | - | - |
| 2 | 975657100125 | 125 | 200 | 250 | 135 | 5 | 4.5 | 1.02 | - | - |
| 3 | 975657100140 | 140 | 200 | 250 | 127.5 | 5 | 4.5 | 1.27 | - | - |
| 4 | 975657100160 | 160 | 250 | 350 | 180 | 5 | 5 | 2.33 | - | - |
| 5 | 975657100180 | 180 | 250 | 350 | 195 | 5 | 5 | 2.95 | - | - |
| 6 | 975657100200 | 200 | 350 | 500 | 185 | 5 | 5 | 5.2 | - | - |
| 7 | 975657100225 | 225 | 350 | 500 | 200 | 5 | 5 | 6.55 | - | - |
| 8 | 975657100250 | 250 | 450 | 600 | 207.5 | 5 | 5 | 9.72 | - | - |
| 9 | 975657100280 | 280 | 450 | 600 | 195 | 5 | 5 | 12.18 | - | - |
| 10 | 975657100315 | 315 | 500 | 700 | 200 | 6 | 5.6 | 17.92 | - | - |
| 11 | 975657100355 | 355 | 600 | 800 | 217.5 | 6 | 6.3 | 26 | - | - |
| 12 | 975657100400 | 400 | 700 | 950 | 222.5 | 7 | 6.3 | 39.24 | - | - |
| 13 | 975657100500 | 500 | 850 | 1200 | 225 | 8 | 7.1 | 77.4 | - | - |
