FOUR-WAY TEE
The Four Corner Tee is a multi-outlet fitting designed to provide connection and routing to four separate lines in high density polyethylene (PE100) pipelines. This product is used to distribute pipelines in different directions or zones. It is assembled by electrofusion or butt welding methods and provides safe, durable and leak-proof connections in piping systems.
Four Corner Tee – Multiple Connection Solution for HDPE Pipe Systems
Areas of Use:
-
Water distribution and wastewater systems
-
Natural gas and industrial liquid transportation lines
-
Agricultural irrigation systems
-
Project-specific multiple branch requirements
-
Infrastructure and superstructure pipe systems
Advantages:
-
Simultaneous connection to four separate lines
-
High durability and chemical resistance with PE100 material
-
Electrofusion and butt weld connection options
-
Long-lasting, leak-proof and resistant to environmental influences
-
Ease of installation and flexibility
-
Adapts to harsh field conditions
Why Choose Four Corner Tee?
When multiple branches and pipeline distribution in different directions are required, the Four Corner Tee increases system efficiency and reduces installation time. Thanks to its robust structure, it offers long-term trouble-free use.
Technical Specifications:
-
Material: PE100
-
Connection Method: Electrofusion / Butt welding
-
Standard Diameters: Project-based production in different sizes
-
Pressure Class: PN10 / PN16
-
Color: Black (standard)

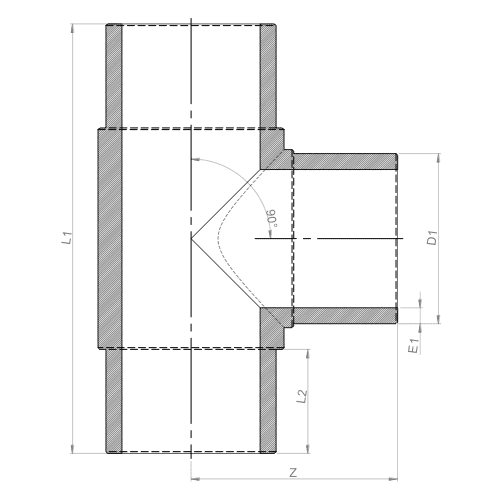

| SIRA | ÜRÜN KODU | ÇAP d [mm] | BASINÇ [bar] | L [mm] | z [mm] | L1 [mm] | e [mm] | AĞIRLIK [kg] | KOLİ ADEDİ | KOLİ EBATI |
|---|---|---|---|---|---|---|---|---|---|---|
| SEQ. | PRODUCT CODE | SIZE d [mm] | PRESSURE [bar] | L [mm] | z [mm] | L1 [mm] | e [mm] | WEIGHT [kg] | IN A PARCEL | PCS PRICE |
| 1 | 974778700032 | 32 | PN10 | 173 | 80 | 45 | 2.3 | 0.08 | - | - |
| 2 | 974778100032 | 32 | PN16 | 173 | 80 | 45 | 3 | 0.13 | - | - |
| 3 | 974778700040 | 40 | PN10 | 186 | 96.3 | 53 | 2.8 | 0.13 | - | - |
| 4 | 974778100040 | 40 | PN16 | 186 | 96.3 | 53 | 4.05 | 0.19 | - | - |
| 5 | 974778700050 | 50 | PN10 | 214 | 111.2 | 60.3 | 3.4 | 0.24 | - | - |
| 6 | 974778100050 | 50 | PN16 | 214 | 111.2 | 60.3 | 4.8 | 0.36 | - | - |
| 7 | 974778700063 | 63 | PN10 | 247 | 121.9 | 65 | 4.12 | 0.4 | - | - |
| 8 | 974778100063 | 63 | PN16 | 247 | 121.9 | 65 | 6.37 | 0.6 | - | - |
| 9 | 974778700075 | 75 | PN10 | 277.3 | 133.3 | 69.8 | 4.79 | 0.63 | - | - |
| 10 | 974778100075 | 75 | PN16 | 277.3 | 133.3 | 69.8 | 7.4 | 0.94 | - | - |
| 11 | 974778700090 | 90 | PN10 | 288.7 | 148 | 80 | 5.8 | 0.9 | - | - |
| 12 | 974778100090 | 90 | PN16 | 288.7 | 148 | 80 | 9.2 | 1.35 | - | - |
| 13 | 974778700110 | 110 | PN10 | 343 | 165.9 | 89.5 | 6.6 | 1.62 | - | - |
| 14 | 974778100110 | 110 | PN16 | 343 | 165.9 | 89.5 | 10.2 | 1.83 | - | - |
| 15 | 974778700125 | 125 | PN10 | 374 | 192.5 | 100.9 | 8.15 | 2.02 | - | - |
| 16 | 974778100125 | 125 | PN16 | 374 | 192.5 | 100.9 | 12.6 | 3.03 | - | - |
| 17 | 974778700140 | 140 | PN10 | 358 | 182 | 93 | 8.54 | 2.06 | - | - |
| 18 | 974778100140 | 140 | PN16 | 358 | 182 | 93 | 13.2 | 3.1 | - | - |
| 19 | 974778700160 | 160 | PN10 | 485 | 214 | 109.1 | 10.6 | 4.14 | - | - |
| 20 | 974778100160 | 160 | PN16 | 485 | 214 | 109.1 | 14.65 | 5.68 | - | - |
| 21 | 974778700180 | 180 | PN10 | 515 | 232 | 113.96 | 10.8 | 4.82 | - | - |
| 22 | 974778100180 | 180 | PN16 | 515 | 232 | 113.96 | 16.5 | 7.22 | - | - |
| 23 | 974778700200 | 200 | PN10 | 505 | 243 | 122.3 | 11.7 | 6.96 | - | - |
| 24 | 974778100200 | 200 | PN16 | 505 | 243 | 122.3 | 18.7 | 9.4 | - | - |
| 25 | 974778700225 | 225 | PN10 | 533 | 251.5 | 121.7 | 13.5 | 7.88 | - | - |
| 26 | 974778100225 | 225 | PN16 | 533 | 251.5 | 121.7 | 20.6 | 10.86 | - | - |
| 27 | 974778700250 | 250 | PN10 | 583 | 284 | 132.45 | 20.5 | 13.6 | - | - |
| 28 | 974778100250 | 250 | PN16 | 583 | 284 | 132.45 | 23.2 | 15.65 | - | - |
| 29 | 974778700315 | 315 | PN10 | 715 | 337.5 | 152.65 | 20.7 | 21.5 | - | - |
| 30 | 974778100315 | 315 | PN16 | 715 | 337.5 | 152.65 | 31.2 | 32.25 | - | - |
