ELBOW °45

HDPE SPIGOT ELBOW (SPIGOT ELBOW):

Product Description: Yildizpoliethylene Hdpe spigot elbows are produced with high quality standards and have become an indispensable part of the projects. Hdpe spigot elbows are a spigot elbow connection piece used to change the direction of the pipeline. Since HDPE pipes are joined by butt welding method, they are generally one of the most preferred product groups. The joining process is easier to apply and faster.

Areas of Use: Used in cases where direction changes are required in pipe systems.

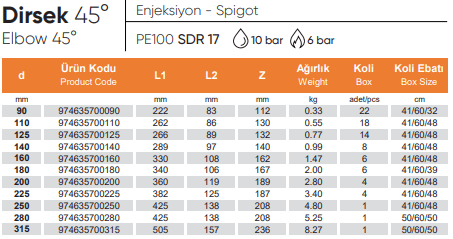

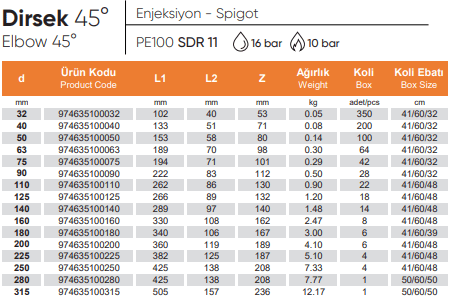

SIRAÜRÜN KODUÇAP d [mm]BASINÇ [bar]L [mm]z [mm]L1 [mm]e [mm]AĞIRLIK [kg]KOLİ ADEDİKOLİ EBATI
SEQ.PRODUCT CODESIZE d [mm]PRESSURE [bar]L [mm]z [mm]L1 [mm]e [mm]WEIGHT [kg]IN A PARCELPCS PRICE
197463570003232PN10102.3753.3440.42.30.0322030/60/41
297463510003232PN16102.3753.3440.43.10.0522030/60/41
397463570004040PN10132.871.4512.80.058030/60/41
497463510004040PN16132.871.4513.80.088030/60/41
597463570005050PN10152.880.258.13.40.096530/60/41
697463510005050PN16152.880.258.15.150.146530/60/41
797463570006363PN10188.798.469.94.30.156030/60/41
897463510006363PN16188.798.469.95.80.236030/60/41
997463570007575PN10194100.971.34.80.194030/60/41
1097463510007575PN16194100.971.36.80.294030/60/41
1197463570009090PN10222.2112.382.95.50.332830/60/41
1297463510009090PN16222.2112.382.98.450.52830/60/41
13974635700110110PN10262.4129.586.46.80.552241/60/46
14974635100110110PN16262.4129.586.410.10.822241/60/46
15974635700125125PN10265.5132.3897.60.771841/60/46
16974635100125125PN16265.5132.38911.71.2251841/60/46
17974635700140140PN10288.7140978.40.991441/60/46
18974635100140140PN16288.71409712.81.61441/60/46
19974635700160160PN10329.5162107.89.51.47841/60/46
20974635100160160PN16329.5162107.814.72.43841/60/46
21974635700180180PN10340167.310611.252641/60/46
22974635100180180PN16340167.310617.42.84641/60/46
23974635700200200PN10360189118.512.32.8641/60/46
24974635100200200PN16360189118.5194.19641/60/46
25974635700225225PN10382186.5124.7143.4650/60/50
26974635100225225PN16382186.5124.7215.18650/60/50
27974635700250250PN10425207.513816.24.8450/60/50
28974635100250250PN16425207.5138257.32450/60/50
29974635700280280PN10425207.5138257.32450/60/50
30974635100280280PN16425207.5138257.32450/60/50
31974635700315315PN10504.5235.5156.8259.12450/60/50
32974635100315315PN16504.5235.5156.8259.12450/60/50
