HDPE EF Tapping Tee is an electrofusion welded fitting designed for easy service or branch connection to the main line in high density polyethylene (PE100) pipe systems. It is mounted to the pipe by electrofusion method in a leak-proof and durable way. Service Tee is ideal for various pipelines such as water, natural gas, waste water, etc. and is ideal for maintenance, repair or new line connections on the line.
HDPE EF Tapping Tee (Electrofusion TappingTee) – Easy and Reliable Service Connection in HDPE Pipelines
Areas of Use:
Drinking water and potable water distribution systems
Natural gas distribution lines
Waste water and sewage systems
Agricultural irrigation lines
Industrial liquid and gas transportation projects
Advantages:
Fast and safe assembly by electrofusion welding
High durability and flexibility with PE100 material
Leak-free and long-lasting connection
Service connection without damaging the main line
High resistance to chemical and environmental influences
Labor and time savings during assembly
Why Choose HDPE EF Service Tee?
When it is necessary to add a service line to the main line in HDPE pipe systems, the electrofusion service tee is a reliable, permanent and easily applicable solution. It provides service connection with high performance without disrupting project continuity.
Technical Specifications:
Material: PE100
Connection Method: Electrofusion welding
Pressure Class: PN10 / PN16
Color: Black (standard)

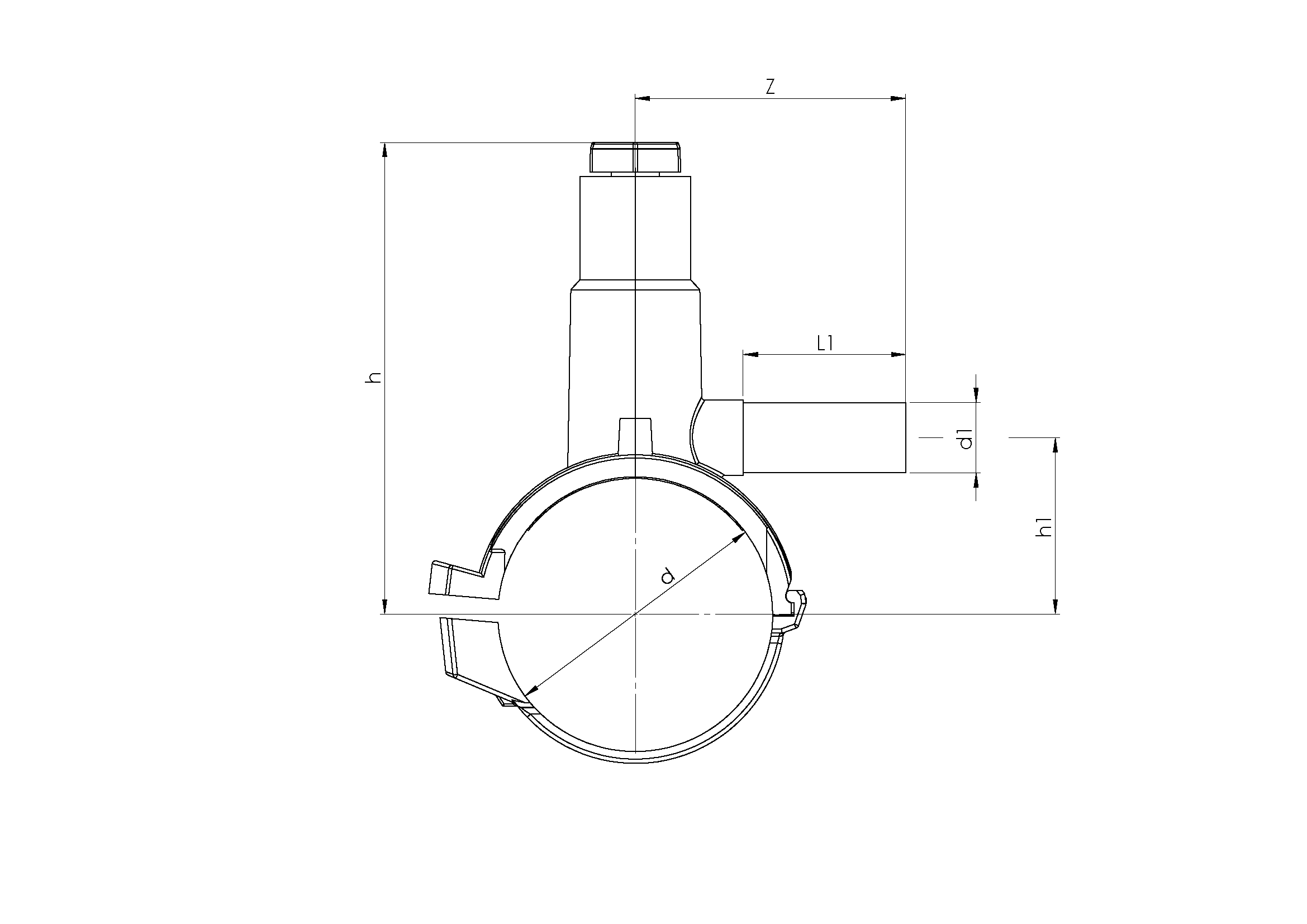

Sıra | Ürün Kodu | Ürün Adı | d (mm) | d1 (mm) | l1 (mm) | h (mm) | h1 (mm) | z (mm) | L (mm) | Ağırlık (kg ) |
---|---|---|---|---|---|---|---|---|---|---|
SEQ | PRODUCT CODE | PRODUCT NAME | d (mm) | d1 (mm) | l1 (mm) | h (mm) | h1 (mm) | z (mm) | L (mm) | WEIGHT [kg] |
1 | 973363103240 | 40/32 EF Servis TE | 40 | 32 | 76 | 135 | 38 | 114 | 120 | 0.33 |
2 | 973363102540 | 40/25 EF Servis TE | 40 | 25 | 75 | 135 | 38 | 114 | 120 | 0.33 |
3 | 973363102040 | 40/20 EF Servis TE | 40 | 20 | 67 | 135 | 38 | 104 | 120 | 0.33 |
4 | 973363103250 | 50/32 EF Servis TE | 50 | 32 | 76 | 135 | 43 | 117 | 120 | 0.33 |
5 | 973363102550 | 50/25 EF Servis TE | 50 | 25 | 75 | 135 | 43 | 113 | 120 | 0.33 |
6 | 973363102050 | 50/20 EF Servis TE | 50 | 20 | 64 | 135 | 43 | 105 | 120 | 0.3 |
7 | 973363106363 | 63/63 EF Servis TE | 63 | 63 | 107 | 180 | 51 | 149 | 120 | 0.7 |
8 | 973363105063 | 63/50 EF Servis TE | 63 | 50 | 92 | 180 | 51 | 138 | 120 | 0.65 |
9 | 973363104063 | 63/40 EF Servis TE | 63 | 40 | 85 | 180 | 51 | 126 | 120 | 0.6 |
10 | 973363103263 | 63/32 EF Servis TE | 63 | 32 | 76 | 180 | 51 | 117 | 120 | 0.6 |
11 | 973363102563 | 63/25 EF Servis TE | 63 | 25 | 75 | 180 | 51 | 116 | 120 | 0.6 |
12 | 973363102063 | 63/20 EF Servis TE | 63 | 20 | 75 | 180 | 51 | 116 | 120 | 0.6 |
13 | 973363106375 | 75/63 EF Servis TE | 75 | 63 | 107 | 186 | 56 | 152 | 120 | 0.73 |
14 | 973363105075 | 75/50 EF Servis TE | 75 | 50 | 92 | 186 | 56 | 140 | 120 | 0.66 |
15 | 973363104075 | 75/40 EF Servis TE | 75 | 40 | 82 | 186 | 56 | 126 | 120 | 0.62 |
16 | 973363103275 | 75/32 EF Servis TE | 75 | 32 | 76 | 186 | 56 | 118 | 120 | 0.6 |
17 | 973363102575 | 75/25 EF Servis TE | 75 | 25 | 75 | 186 | 56 | 117 | 120 | 0.6 |
18 | 973363102075 | 75/20 EF Servis TE | 75 | 20 | 75 | 186 | 56 | 113 | 120 | 0.6 |
19 | 973363106390 | 90/63 EF Servis TE | 90 | 63 | 100 | 195 | 65 | 160 | 140 | 0.8 |
20 | 973363105090 | 90/50 EF Servis TE | 90 | 50 | 92 | 195 | 65 | 148 | 140 | 0.76 |
21 | 973363104090 | 90/40 EF Servis TE | 90 | 40 | 85 | 195 | 65 | 136 | 140 | 0.7 |
22 | 973363103290 | 90/32 EF Servis TE | 90 | 32 | 76 | 195 | 65 | 120 | 140 | 0.7 |
23 | 973363102590 | 90/25 EF Servis TE | 90 | 25 | 75 | 195 | 65 | 120 | 140 | 0.7 |
24 | 973363102090 | 90/20 EF Servis TE | 90 | 20 | 75 | 195 | 65 | 120 | 140 | 0.7 |
25 | 973363163110 | 110/63 EF Servis TE | 110 | 63 | 100 | 200 | 75 | 165 | 140 | 0.85 |
26 | 973363150110 | 110/50 EF Servis TE | 110 | 50 | 92 | 200 | 75 | 156 | 140 | 0.8 |
27 | 973363140110 | 110/40 EF Servis TE | 110 | 40 | 84 | 200 | 75 | 140 | 140 | 0.74 |
28 | 973363132110 | 110/32 EF Servis TE | 110 | 32 | 76 | 200 | 75 | 126 | 140 | 0.74 |
29 | 973363125110 | 110/25 EF Servis TE | 110 | 25 | 75 | 200 | 75 | 120 | 140 | 0.73 |
30 | 973363120110 | 110/20 EF Servis TE | 110 | 20 | 75 | 200 | 75 | 120 | 140 | 0.72 |
31 | 973363163125 | 125/63 EF Servis TE | 125 | 63 | 74 | 214 | 80 | 123 | 140 | 0.9 |
32 | 973363150125 | 125/50 EF Servis TE | 125 | 50 | 92 | 214 | 80 | 160 | 140 | 0.82 |
33 | 973363140125 | 125/40 EF Servis TE | 125 | 40 | 74 | 214 | 80 | 123 | 140 | 0.8 |
34 | 973363132125 | 125/32 EF Servis TE | 125 | 32 | 76 | 214 | 80 | 129 | 140 | 0.78 |
35 | 973363125125 | 125/25 EF Servis TE | 125 | 25 | 75 | 214 | 82 | 120 | 140 | 0.78 |
36 | 973363120125 | 125/20 EF Servis TE | 125 | 20 | 74 | 214 | 80 | 123 | 140 | 0.7 |
37 | 973363163140 | 140/63 EF Servis TE | 140 | 63 | 100 | 238 | 95 | 182 | 140 | 1 |
38 | 973363150140 | 140/50 EF Servis TE | 140 | 50 | 92 | 238 | 95 | 164 | 140 | 0.95 |
39 | 973363140140 | 140/40 EF Servis TE | 140 | 40 | 85 | 238 | 95 | 150 | 140 | 0.9 |
40 | 973363132140 | 140/32 EF Servis TE | 140 | 32 | 76 | 238 | 95 | 134 | 140 | 0.9 |
41 | 973363125140 | 140/25 EF Servis TE | 140 | 25 | 75 | 238 | 95 | 126 | 140 | 0.9 |
42 | 973363120140 | 140/20 EF Servis TE | 140 | 20 | 75 | 238 | 95 | 125 | 140 | 0.88 |
43 | 973363163160 | 160/63 EF Servis TE | 160 | 63 | 100 | 247 | 105 | 185 | 140 | 1.1 |
44 | 973363150160 | 160/50 EF Servis TE | 160 | 50 | 92 | 247 | 105 | 171 | 140 | 1 |
45 | 973363140160 | 160/40 EF Servis TE | 160 | 40 | 85 | 247 | 105 | 156 | 140 | 0.96 |
46 | 973363132160 | 160/32 EF Servis TE | 160 | 32 | 76 | 247 | 105 | 141 | 140 | 0.9 |
47 | 973363125160 | 160/25 EF Servis TE | 160 | 25 | 75 | 247 | 105 | 127 | 140 | 0.9 |
48 | 973363120160 | 160/20 EF Servis TE | 160 | 20 | 75 | 247 | 105 | 124 | 140 | 0.9 |
49 | 973363163180 | 180/63 EF Servis TE | 180 | 63 | 100 | 250 | 115 | 192 | 140 | 1.2 |
50 | 973363150180 | 180/50 EF Servis TE | 180 | 50 | 92 | 250 | 115 | 175 | 140 | 1 |
51 | 973363140180 | 180/40 EF Servis TE | 180 | 40 | 85 | 250 | 115 | 160 | 140 | 1 |
52 | 973363132180 | 180/32 EF Servis TE | 180 | 32 | 76 | 250 | 115 | 143 | 140 | 1 |
53 | 973363125180 | 180/25 EF Servis TE | 180 | 25 | 75 | 250 | 115 | 127 | 140 | 0.95 |
54 | 973363120180 | 180/20 EF Servis TE | 180 | 20 | 75 | 250 | 115 | 127 | 140 | 1 |
55 | 973363163200 | 200/63 EF Servis TE | 200 | 63 | 100 | 268 | 125 | 194 | 140 | 1.2 |
56 | 973363150200 | 200/50 EF Servis TE | 200 | 50 | 92 | 268 | 125 | 173 | 140 | 1.1 |
57 | 973363140200 | 200/40 EF Servis TE | 200 | 40 | 84 | 268 | 125 | 160 | 140 | 1.05 |
58 | 973363132200 | 200/32 EF Servis TE | 200 | 32 | 76 | 268 | 125 | 146 | 140 | 1.06 |
59 | 973363125200 | 200/25 EF Servis TE | 200 | 25 | 75 | 268 | 125 | 137 | 140 | 1.05 |
60 | 973363120200 | 200/20 EF Servis TE | 200 | 20 | 75 | 268 | 125 | 126 | 140 | 1.04 |
61 | 973363163225 | 225/63 EF Servis TE | 225 | 63 | 100 | 281 | 137 | 195 | 140 | 1.25 |
62 | 973363150225 | 225/50 EF Servis TE | 225 | 50 | 92 | 281 | 137 | 181 | 140 | 1.2 |
63 | 973363140225 | 225/40 EF Servis TE | 225 | 40 | 83 | 281 | 137 | 165 | 140 | 1.14 |
64 | 973363132225 | 225/32 EF Servis TE | 225 | 32 | 76 | 281 | 137 | 148 | 140 | 1.1 |
65 | 973363125225 | 225/25 EF Servis TE | 225 | 25 | 75 | 281 | 137 | 130 | 140 | 1.07 |
66 | 973363120225 | 225/20 EF Servis TE | 225 | 20 | 75 | 281 | 137 | 125 | 140 | 1.1 |
67 | 973363163250 | 250/63 EF Servis TE | 250 | 63 | 100 | 321 | 217 | 145 | 140 | 1.3 |
68 | 973363150250 | 250/50 EF Servis TE | 250 | 50 | 92 | 321 | 217 | 135 | 140 | 1.22 |
69 | 973363140250 | 250/40 EF Servis TE | 250 | 40 | 85 | 321 | 217 | 135 | 140 | 1.2 |
70 | 973363132250 | 250/32 EF Servis TE | 250 | 32 | 76 | 321 | 217 | 123 | 140 | 1.15 |
71 | 973363125250 | 250/25 EF Servis TE | 250 | 25 | 75 | 321 | 217 | 123 | 140 | 1.1 |
72 | 973363120250 | 250/20 EF Servis TE | 250 | 20 | 75 | 321 | 217 | 123 | 140 | 1.1 |
73 | 973363163280 | 280/63 EF Servis TE | 280 | 63 | 105 | 336 | 191 | 164 | 160 | 1.35 |
74 | 973363150280 | 280/50 EF Servis TE | 280 | 50 | 93 | 336 | 191 | 137 | 160 | 1.3 |
75 | 973363140280 | 280/40 EF Servis TE | 280 | 40 | 86 | 336 | 191 | 130 | 160 | 1.25 |
76 | 973363132280 | 280/32 EF Servis TE | 280 | 32 | 77 | 336 | 191 | 116 | 160 | 1.25 |
77 | 973363125280 | 280/25 EF Servis TE | 280 | 25 | 77 | 336 | 191 | 116 | 160 | 1.3 |
78 | 973363120280 | 280/20 EF Servis TE | 280 | 20 | 77 | 336 | 191 | 116 | 160 | 1.5 |
79 | 973363163315 | 315/63 EF Servis TE | 315 | 63 | 105 | 336 | 191 | 164 | 160 | 1.4 |
80 | 973363150315 | 315/50 EF Servis TE | 315 | 50 | 93 | 336 | 191 | 137 | 160 | 1.3 |
81 | 973363140315 | 315/40 EF Servis TE | 315 | 40 | 86 | 336 | 191 | 130 | 160 | 1.25 |
82 | 973363132315 | 315/32 EF Servis TE | 315 | 32 | 77 | 336 | 191 | 116 | 160 | 1.3 |
83 | 973363125315 | 315/25 EF Servis TE | 315 | 25 | 77 | 336 | 191 | 116 | 160 | 1.32 |
84 | 973363120315 | 315/20 EF Servis TE | 315 | 20 | 77 | 336 | 191 | 116 | 160 | 1.5 |
