EF REDUCING TEE
Electrofusion Reducing Tee is an electrofusion type fitting in HDPE (High Density Polyethylene – PE100) pipe systems, with two ends having the same diameter and the third outlet having a smaller diameter. It is used when a side outlet smaller than the diameter of the main line is required. Thanks to the integrated heating elements on the inner surface, a strong and leak-proof joint is provided with the electrofusion welding machine.
Electrofusion Reducing Tee – Safe and Leak-Proof Side Connection Between HDPE Lines of Different Diameters
Product Description:
EF Reducing Tee; It is safely preferred in drinking water, natural gas, waste water and industrial fluid lines. It can be produced in different diameter combinations and project-specific sizes.
Areas of Use:
-
Water network and distribution systems
-
Natural gas pipelines
-
Sewerage and storm water infrastructures
-
Industrial liquid and gas transportation installations
-
Agricultural irrigation systems
-
Situations where a small diameter line exit from the main line is required
Advantages:
-
Fast and safe assembly with electrofusion technology
-
Switchable design between different diameters
-
Leak-proof and long-lasting connection
-
High resistance to corrosion, impact and chemicals
-
Lightweight and portable
-
Project-specific production options
Technical Specifications:
-
Material: HDPE (PE100)
-
Connection Method: Electrofusion welding
-
Side Outlet Diameter: From Ø20 mm (inegal)
-
Pressure Class: PN10 / PN16
-
Conformity ISO 4427, EN 12201, EN 1555

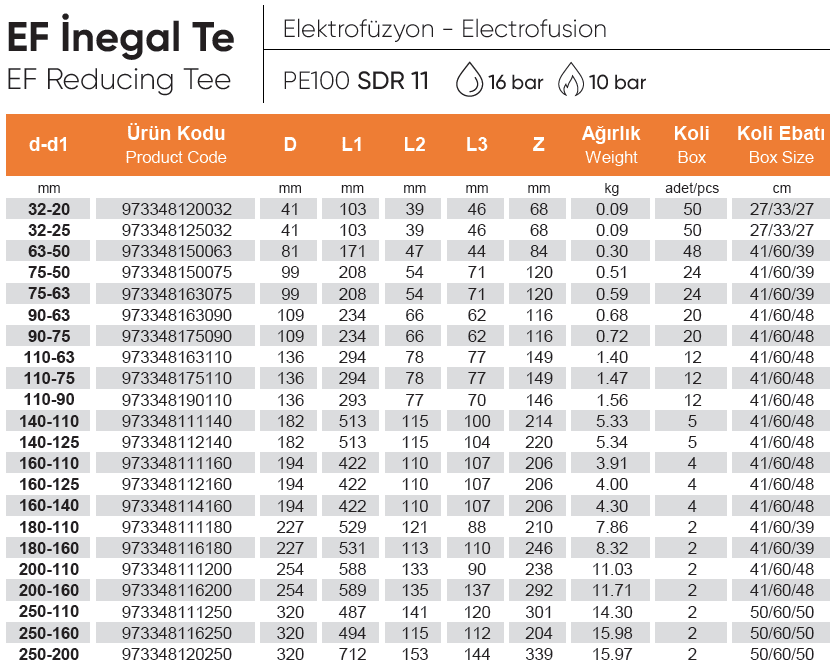

| Sıra | Ürün Kodu | Ürün Adı | D (mm) | d1 (mm) | d2 (mm) | L1 (mm) | L2 (mm) | L (mm) | Z (mm) | Ağırlık (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| SEQ | Product Code | Product Name | D (mm) | d1 (mm) | d2 (mm) | L1 (mm) | L2 (mm) | L (mm) | Z (mm) | Weight (Kg) |
| 1 | 973348190110 | 110/90 EF İnegal Te TE | 135.5 | 110 | 90 | 76.5 | 69.5 | 145.8 | 293.1 | 1.56 |
