EF ELBOW °90
EF Elbow 90° is an electrofusion welded fitting used in HDPE (High Density Polyethylene – PE100) pipe systems to change the line direction by 90 degrees. Thanks to the integrated resistance wires on the inner surface, HDPE materials are melted when connected to the electrofusion welding machine, creating a strong and leak-proof connection.
EF Elbow 90° – Secure Connection at Right Angle Turns in HDPE Pipelines
Product Description:
Especially in infrastructure projects where pipe routing in narrow spaces is critical, 90° electrofusion elbow offers a long-lasting and safe solution. Produced in different diameters and PN classes, it adapts to wide application areas.
Areas of Use:
-
Potable and potable water pipe systems
-
Natural gas pipelines
-
Industrial liquid and gas transportation systems
-
Sewerage and storm water infrastructures
-
Agricultural irrigation projects
-
All HDPE lines requiring diversion
Advantages:
-
Ideal solution for 90° direction change
-
High sealing with electrofusion technology
-
Fast and safe installation
-
Resistant to chemicals, corrosion and UV radiation
-
Project-specific diameter and pressure options
-
Maintenance-free, long-lasting use
Technical Specifications:
-
Material: PE100 – HDPE
-
Angle 90°
-
Connection Method: Electrofusion welding
-
Pressure Class: PN10 / PN16
-
Standards ISO 4427, EN 12201, EN 1555

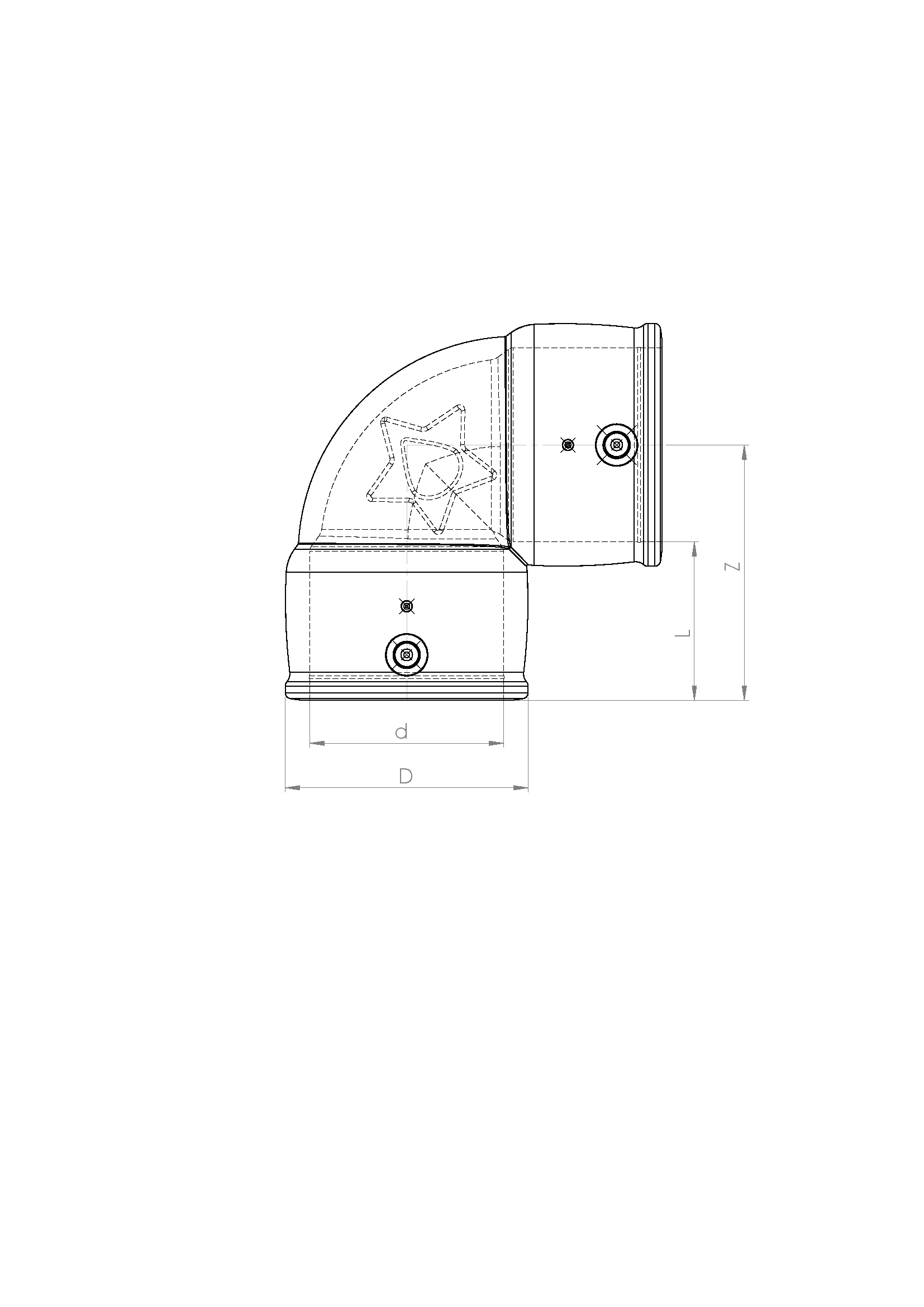

| Sıra | Ürün Kodu | Ürün Adı | D (mm) | d (mm) | L (mm) | Z (mm) | Ağırlık (Kg) |
|---|---|---|---|---|---|---|---|
| SEQ | Product Code | Product Name | D (mm) | d (mm) | L (mm) | Z (mm) | Weight (kg) |
| 1 | 973338100025 | 32/90 EF Dirsek | 41.5 | 32 | 39.4 | 45.4 | 0.088 |
| 2 | 973338100032 | 50/90 EF Dirsek | 67.5 | 50 | 46.5 | 71.5 | 0.266 |
| 3 | 973338100063 | 75/90 EF Dirsek | 98.6 | 75 | 69.4 | 107 | 0.54 |
| 4 | 973338100075 | 90/90 EF Dirsek | 108.6 | 90 | 71.8 | 118.2 | 0.61 |
| 5 | 973338100090 | 110/90 EF Dirsek | 134.7 | 110 | 91 | 147 | 1.125 |
| 6 | 973338100110 | 160/90 EF Dirsek | 189.5 | 160 | 123.2 | 203.2 | 2.92 |
