Areas of Use: It is frequently used as welding in the joining of products and is also used to make the welding process easier and to intervene more quickly in defective parts that occur between the lines.

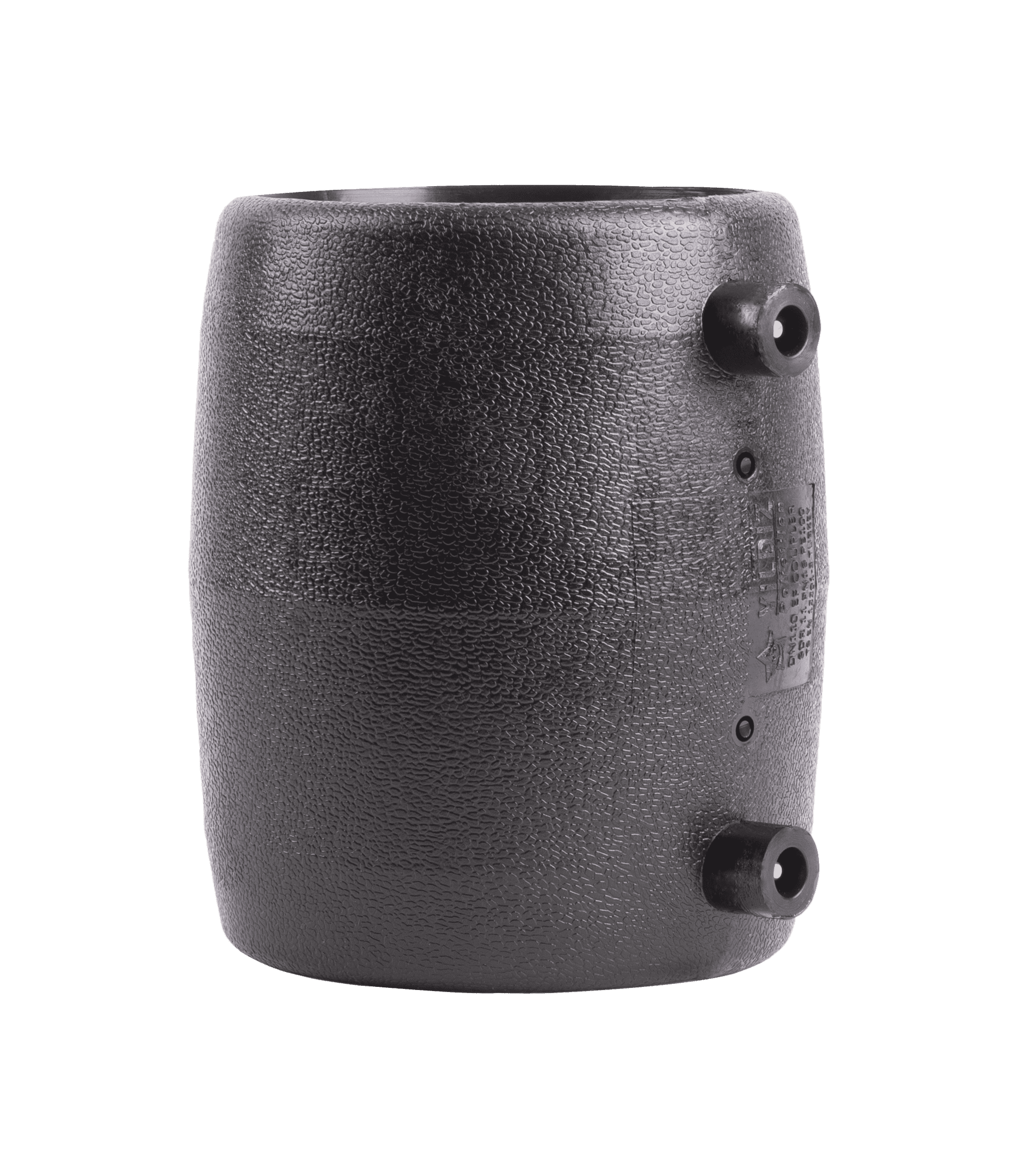

HDPE EF COUPLER (ELECTROFUSION COUPLER):
HDPE EF Couplings are a fitting used in joints made by electrofusion method. It is used to join HDPE pipes in areas where butt welding method is not applied. It is used by adding one hdpe ef sleeve between each pipe on the whole line. Two HDPE pipes with the same diameter are placed in the hdpe ef sleeve and melted together with the current given by the resistances inside this fitting, so that both pipes stick to each other.
Areas of Use:
Potable and potable water pipelines
Natural gas distribution systems
Industrial liquid and gas transportation lines
Sewerage and drainage infrastructures
Agricultural irrigation systems
Pipe repair, extension or connection points
Advantages:
Robust and leak-proof joint with electrofusion technology
Easy assembly, low labor time
Resistance to chemicals, impact and UV radiation
Suitable for high pressure
Production in different diameters and pressure classes
Long life and maintenance-free construction
Technical Specifications:
Material: HDPE (PE100)
Connection Method: Electrofusion welding
Diameter Range: Ø20 mm – Ø1200 mm
Pressure Class: PN10 / PN16
Conformity ISO 4427, EN 12201, EN 1555

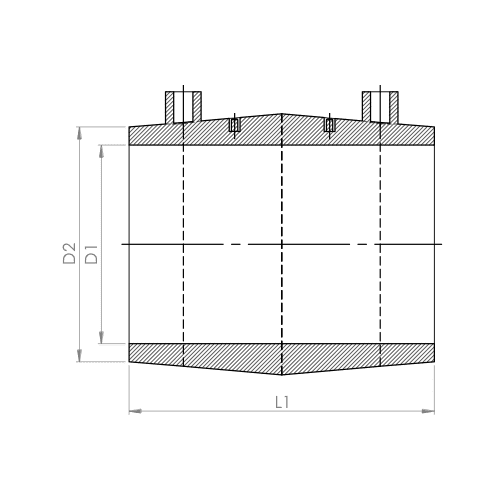

SIRA | ÜRÜN KODU | ÇAP d [mm] | BASINÇ [bar] | d1 [mm] | L1 [mm] | AĞIRLIK [kg] | KOLİ ADEDİ | KOLİ EBATI |
---|---|---|---|---|---|---|---|---|
SEQ | PRODUCT CODE | SIZE d [mm] | PRESSURE [bar] | d1 [mm] | L1 [mm] | WEIGHT [kg] | IN A PARCEL | PCS PRICE |
1 | 973326700025 | 25 | PN10 | 36 | 71 | 0.05 | 120 | 41/60/31 |
2 | 973326700032 | 32 | PN10 | 41.4 | 86.5 | 0.074 | 70 | 24/35/27 |
3 | 973326700040 | 40 | PN10 | 50.7 | 88.2 | 0.094 | 100 | 41/60/31 |
4 | 973326700050 | 50 | PN10 | 62.6 | 166.3 | 0.162 | 80 | 41/60/31 |
5 | 973326700063 | 63 | PN10 | 76.45 | 114 | 0.22 | 72 | 41/60/31 |
6 | 973326700075 | 75 | PN10 | 89.1 | 126.3 | 0.335 | 56 | 41/60/31 |
7 | 973326100075 | 75 | PN16 | 89.1 | 126.3 | 0.335 | 56 | 41/60/31 |
8 | 973326700090 | 90 | PN10 | 110 | 140 | 0.56 | 36 | 38/50/43 |
9 | 973326100090 | 90 | PN16 | 110 | 140 | 0.56 | 36 | 38/50/43 |
10 | 973326700110 | 110 | PN10 | 128.1 | 168.5 | 0.84 | 27 | 43/48/52 |
11 | 973326100110 | 110 | PN16 | 128.1 | 168.5 | 0.84 | 27 | 43/48/52 |
12 | 973326700125 | 125 | PN10 | 139.6 | 160.2 | 0.85 | 16 | 41/60/31 |
13 | 973326100125 | 125 | PN16 | 139.6 | 160.2 | 0.85 | 16 | 41/60/31 |
14 | 973326700140 | 140 | PN10 | 163.7 | 174.5 | 1.4 | 12 | 41/60/37 |
15 | 973326100140 | 140 | PN16 | 163.7 | 174.5 | 1.4 | 12 | 41/60/37 |
16 | 973326700160 | 160 | PN10 | 198.3 | 181.5 | 1.8 | 12 | 41/60/37 |
17 | 973326100160 | 160 | PN16 | 198.3 | 181.5 | 1.8 | 12 | 41/60/37 |
18 | 973326700180 | 180 | PN10 | 215.5 | 187.1 | 2.15 | 12 | 45/67/40 |
19 | 973326100180 | 180 | PN16 | 215.5 | 187.1 | 2.15 | 12 | 45/67/40 |
20 | 973326700200 | 200 | PN10 | 244.2 | 215.4 | 3.42 | 6 | 41/60/46 |
21 | 973326100200 | 200 | PN16 | 244.2 | 215.4 | 3.42 | 6 | 41/60/46 |
22 | 973326700225 | 225 | PN10 | 272.1 | 220.2 | 4.12 | 8 | 50/60/50 |
23 | 973326100225 | 225 | PN16 | 272.1 | 220.2 | 4.12 | 8 | 50/60/50 |
24 | 973326700250 | 250 | PN10 | 311.4 | 259.9 | 6.556 | 8 | 34/61/52 |
25 | 973326100250 | 250 | PN16 | 311.4 | 259.9 | 6.556 | 8 | 34/61/52 |
26 | 973326700280 | 280 | PN10 | 358 | 240.4 | 9.2 | 4 | 41/60/37 |
27 | 973326100280 | 280 | PN16 | 358 | 240.4 | 9.2 | 4 | 41/60/37 |
28 | 973326700315 | 315 | PN10 | 393 | 258 | 11.13 | 2 | 41/60/37 |
29 | 973326100315 | 315 | PN16 | 393 | 258 | 11.13 | 2 | 41/60/37 |
30 | 973326700355 | 355 | PN10 | 432 | 286 | 13.35 | 2 | 41/60/46 |
31 | 973326100355 | 355 | PN16 | 432 | 286 | 13.35 | 2 | 41/60/46 |
32 | 973326700400 | 400 | PN10 | 477 | 303.5 | 15.38 | 2 | 50/60/50 |
33 | 973326100400 | 400 | PN16 | 477 | 303.5 | 15.38 | 2 | 50/60/50 |
34 | 973326700450 | 450 | PN10 | 550 | 347.5 | 26 | - | - |
35 | 973326100450 | 450 | PN16 | 550 | 347.5 | 26 | - | - |
36 | 973326700500 | 500 | PN10 | 577.5 | 361 | 23.2 | - | - |
37 | 973326100500 | 500 | PN16 | 577.5 | 361 | 23.2 | - | - |
38 | 973326700560 | 560 | PN10 | 637 | 367.5 | 25.4 | - | - |
39 | 973326100560 | 560 | PN16 | 637 | 367.5 | 25.4 | - | - |
40 | 973326700630 | 630 | PN10 | 779 | 369 | 59 | - | - |
41 | 973326100630 | 630 | PN16 | 779 | 369 | 59 | - | - |
42 | 973326700710 | 710 | PN10 | 860 | 372 | 68.7 | - | - |
43 | 973326100710 | 710 | PN16 | 860 | 372 | 68.7 | - | - |
44 | 973326700800 | 800 | PN10 | 930 | 400 | 60 | - | - |
45 | 973326100800 | 800 | PN16 | 930 | 400 | 60 | - | - |
46 | 973326700900 | 900 | PN10 | 1080 | 455 | 80.6 | - | - |
47 | 973326100900 | 900 | PN16 | 1080 | 455 | 80.6 | - | - |
48 | 973326701000 | 1000 | PN10 | 1104 | 485 | 116.4 | - | - |
49 | 973326101000 | 1000 | PN16 | 1104 | 485 | 116.4 | - | - |
