STEEL FLANGE PN16
Steel Flange PN16 is a high pressure resistant connection element used to connect two pipes or pipes and equipment such as valves and pumps in piping systems. These steel flanges produced in accordance with PN16 pressure class; It is widely preferred in water, natural gas, steam, chemical fluid and industrial installations with its durability, tightness and long-lasting structure.
Steel Flange PN16 – Pressure Resistant Secure Flanged Connection Solution
Product Description:
PN16 steel flanges manufactured in accordance with DIN and EN standards are generally available with welding neck, flat face or blind type. When used in combination with sealing gaskets and bolted connections, they provide maximum safety in the system.
Areas of Use:
-
Water treatment and distribution systems
-
Heating and cooling installations
-
Natural gas and LPG pipelines
-
Steam and compressed air systems
-
Chemical and petrochemical industries
-
Industrial machine and pump connections
Advantages:
-
High strength suitable for PN16 pressure class
-
Corrosion and pressure resistant steel structure
-
Long-lasting, reliable and leak-proof connection
-
Easy installation with standard connection dimensions
-
Wide range of diameters and models
-
Compliance with DIN, EN and ANSI norms

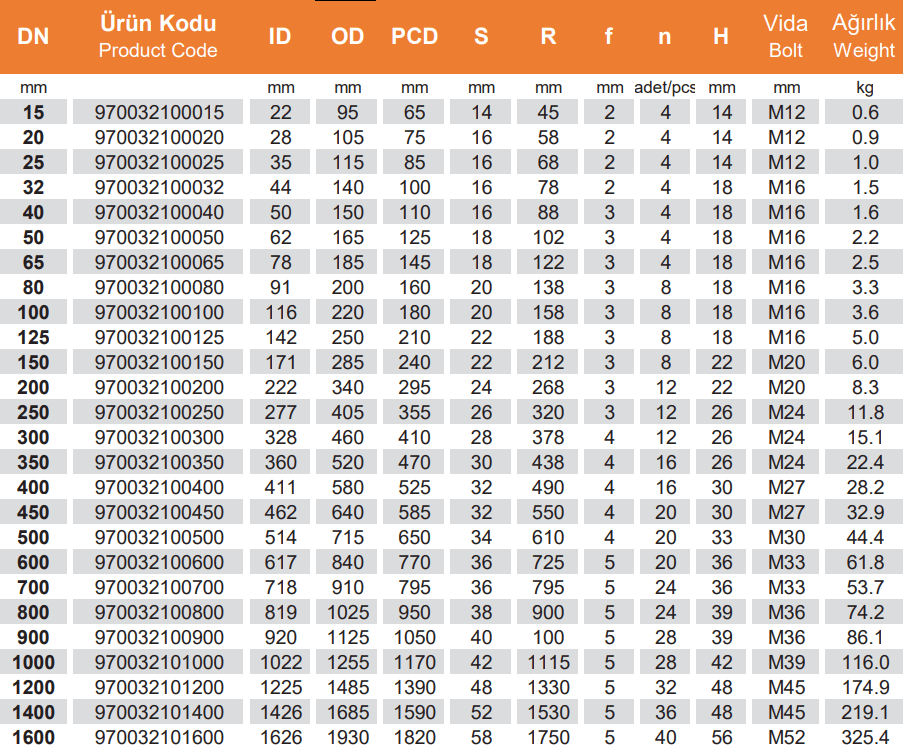

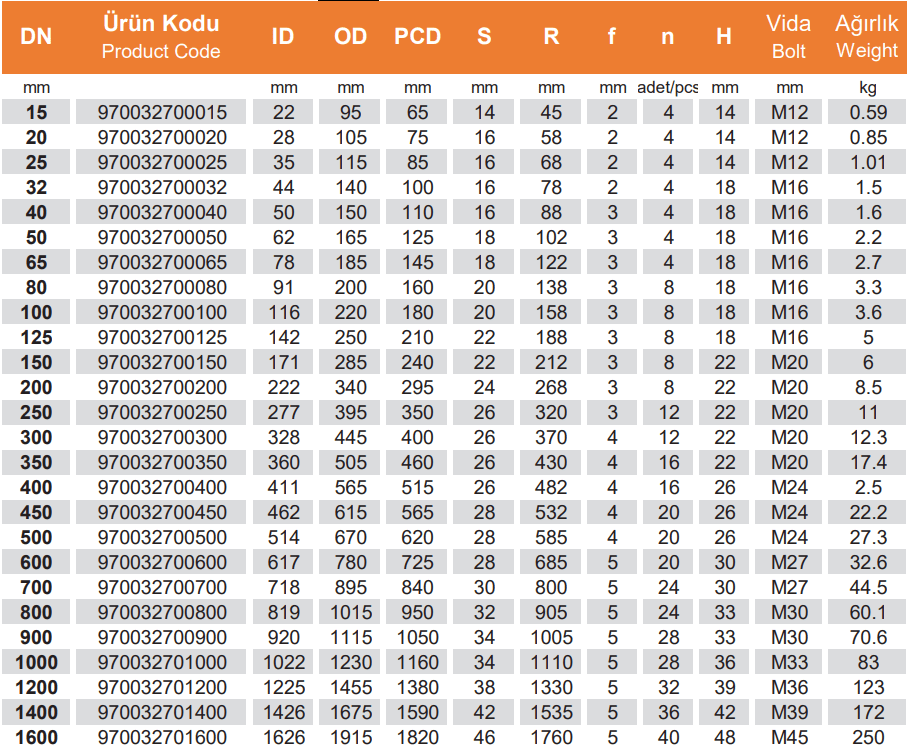

Technical Specifications:
-
Material: Carbon steel, ST37/ST52/ST52/A105 (on request)
-
Connection Type: Flanged
-
Pressure Class: PN16
-
Diameter Range: DN15 – DN1200
-
Surface: Black, galvanized or painted (optional)
-
Conformity: DIN EN 1092-1 / ISO 7005-1
