REDUCİNG TEE
Konfeksiyon İnegal Tee is a triple connection element in HDPE (High Density Polyethylene) pipe systems, two ends of which have the same diameter and the third end has a different diameter, i.e. their diameters are not equal. This special tee is used when a transition between the main line and a smaller line is required. It is applied by electrofusion or butt welding method and provides a leak-proof, robust and long-lasting connection.
REDUCİNG TEE
Confection Inegal Tee – Secure Connection of Different Diameters in HDPE Pipe Systems
Product Description:
Confection İnegal Tee, which is specially produced according to different diameter combinations, is frequently preferred in drinking water, natural gas, sewage and industrial liquid transportation lines.
Areas of Use:
-
Drinking and potable water distribution systems
-
Natural gas and LPG pipelines
-
Waste water and sewage systems
-
Industrial liquid and gas transportation lines
-
Agricultural irrigation systems
-
Points to connect valves, meters or service outlets to the lines
Advantages:
-
Provides transition between main and secondary lines
-
Project compatibility with production options in different diameters
-
Easy and safe assembly by electrofusion or butt welding
-
Corrosion, impact and chemical resistant construction
-
Long lasting solution made of HDPE material
-
High pressure and temperature resistance

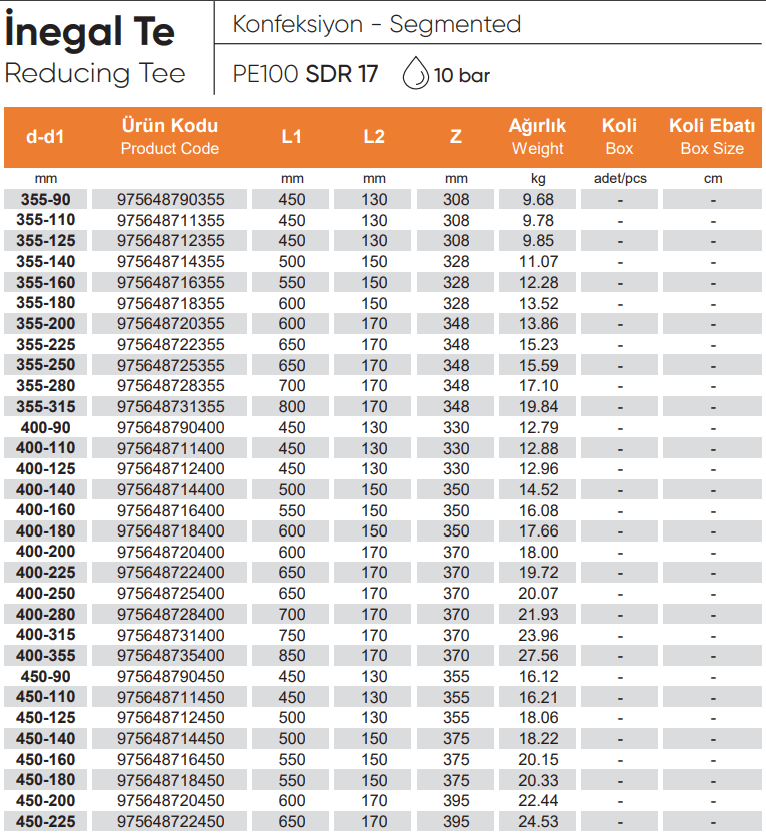

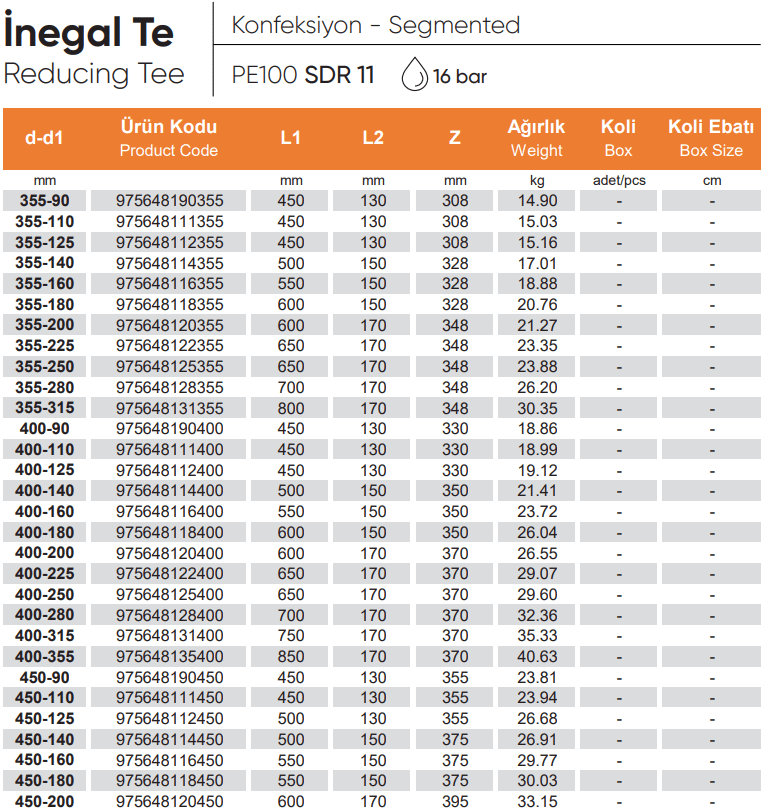

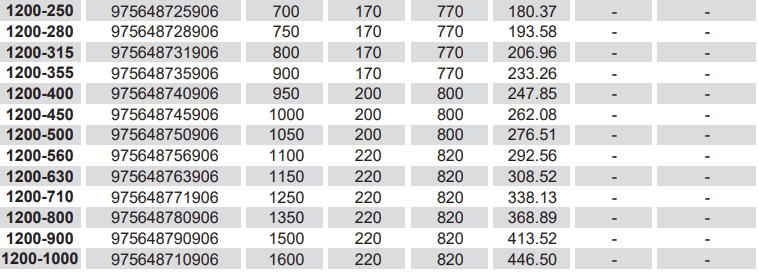

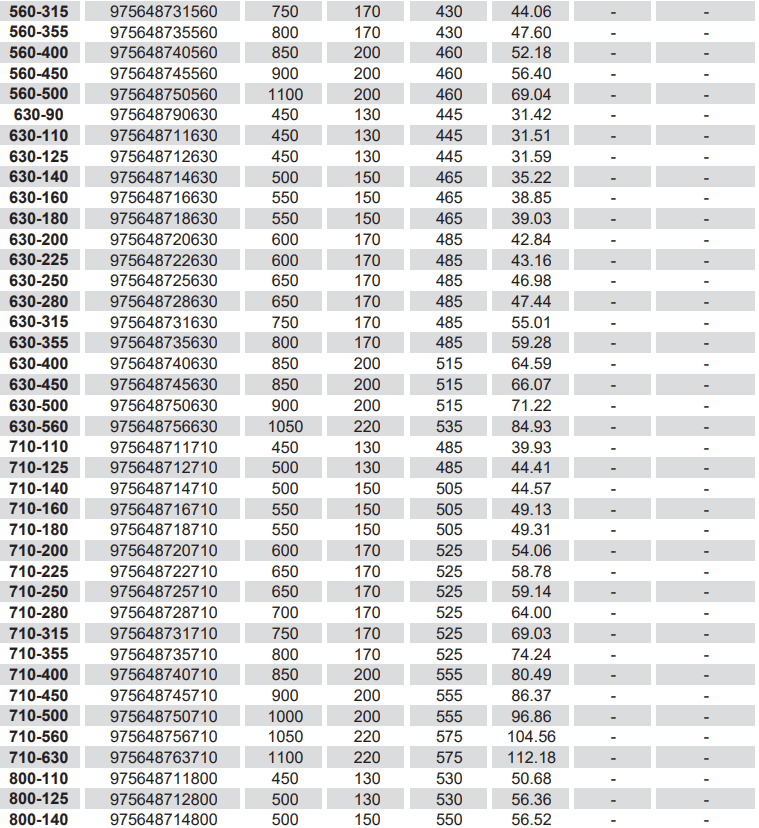

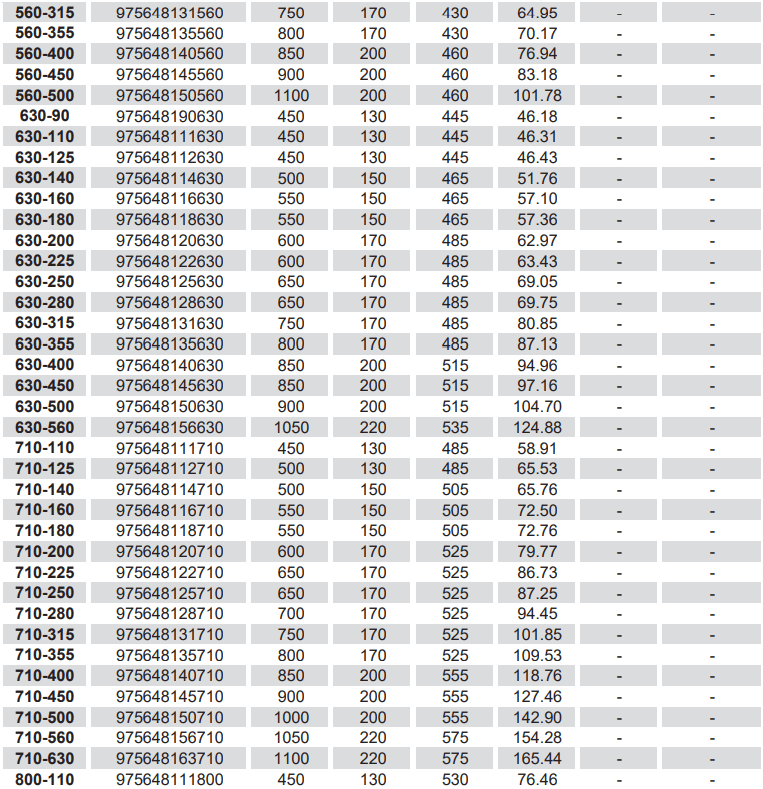

Technical Specifications:
-
Material: HDPE (PE100)
-
Connection Method: Electrofusion welding or butt welding
-
Diameter Combinations: Variable according to project requirements
-
Pressure Class: PN10 / PN16
