ELBOW °60
Elbow °60 is an electrofusion fitting designed to provide a 60 degree angle change of direction in high density polyethylene (PE100) pipelines. It is especially used at points where the pipeline needs to make a sharp turn. It is assembled by electrofusion or butt welding method and provides leak-proof and durable connection. It can be produced in different diameters in accordance with the projects and field conditions.
Elbow °60 – Electrofusion Elbow for Sharp Directional Change in HDPE Pipe Systems
Areas of Use:
-
Water distribution and waste water lines
-
Natural gas infrastructure systems
-
Industrial liquid and gas transportation projects
-
Agricultural irrigation systems
-
Applications requiring pipe routing at a sharp angle
Advantages:
-
Effective direction change with 60° angle
-
High durability and chemical resistance thanks to PE100 material
-
Electrofusion and butt weld connection options
-
Durable and resistant to environmental influences
-
Easy assembly and secure sealing
-
Superior performance in harsh field conditions
Technical Specifications:
-
Material: PE100
-
Angle 60°
-
Connection Type: Electrofusion / Butt welding
-
Diameter Range: Can be customized according to the project
-
Pressure Class: PN10 / PN16
-
Color: Black (standard)

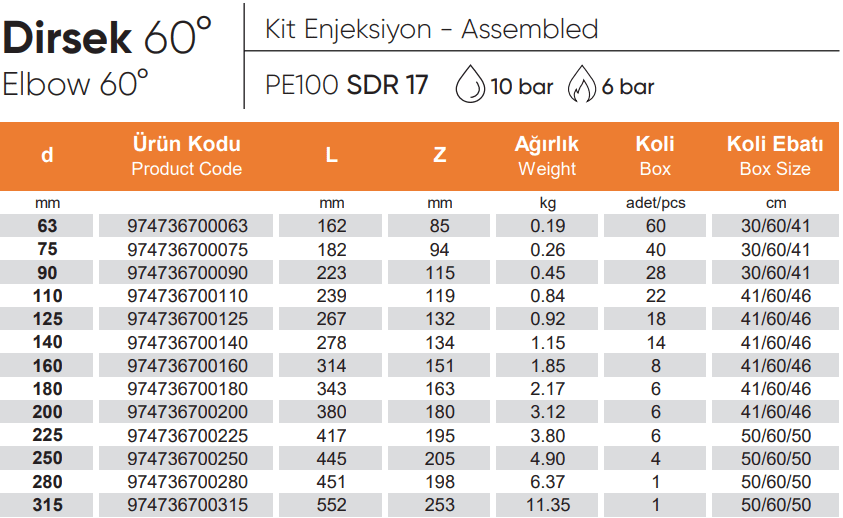

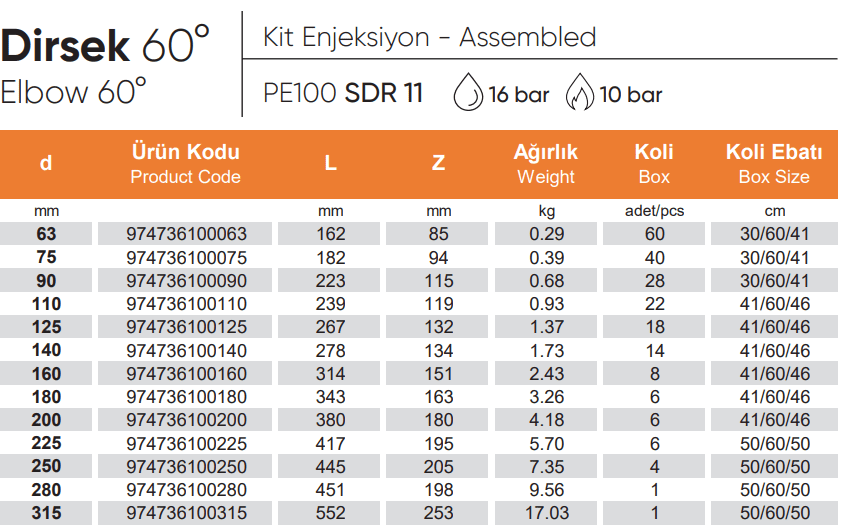

| SIRA | ÜRÜN KODU | ÇAP d [mm] | BASINÇ [bar] | L [mm] | z [mm] | L1 [mm] | e [mm] | AĞIRLIK [kg] | KOLİ ADEDİ | KOLİ EBATI |
|---|---|---|---|---|---|---|---|---|---|---|
| SEQ | PRODUCT CODE | SIZE d [mm] | PRESSURE [bar] | L [mm] | z [mm] | L1 [mm] | e [mm] | WEIGHT [kg] | IN A PARCEL | PCS PRICE |
| 1 | 974636700090 | 90 | PN10 | 217.93 | 104.73 | 85.6 | 5.4 | 0.31 | 28 | 30/60/41 |
| 2 | 974636100090 | 90 | PN16 | 217.93 | 104.73 | 85.6 | 8.6 | 0.45 | 28 | 30/60/41 |
| 3 | 974636700110 | 110 | PN10 | 217.56 | 101.85 | 82.4 | 6.7 | 0.45 | 22 | 41/60/46 |
| 4 | 974636100110 | 110 | PN16 | 217.56 | 101.85 | 82.4 | 10.1 | 0.65 | 22 | 41/60/46 |
| 5 | 974636700125 | 125 | PN10 | 248.41 | 116.37 | 94 | 7.5 | 0.65 | 18 | 41/60/46 |
| 6 | 974636100125 | 125 | PN16 | 248.41 | 116.37 | 94 | 12.5 | 0.97 | 18 | 41/60/46 |
| 7 | 974636700140 | 140 | PN10 | 256 | 118.43 | 95.9 | 8.8 | 0.83 | 14 | 41/60/46 |
| 8 | 974636100140 | 140 | PN16 | 256 | 118.43 | 95.9 | 14.1 | 1.23 | 14 | 41/60/46 |
| 9 | 974636700160 | 160 | PN10 | 292.53 | 135.33 | 108 | 10.15 | 1.25 | 8 | 41/60/46 |
| 10 | 974636100160 | 160 | PN16 | 292.53 | 135.33 | 108 | 15.4 | 1.84 | 8 | 41/60/46 |
| 11 | 974636700180 | 180 | PN10 | 303.63 | 138.6 | 108.8 | 11.7 | 1.62 | 6 | 41/60/46 |
| 12 | 974636100180 | 180 | PN16 | 303.63 | 138.6 | 108.8 | 16.6 | 2.38 | 6 | 41/60/46 |
| 13 | 974636700200 | 200 | PN10 | 338.79 | 154.76 | 121 | 12.1 | 2.23 | 6 | 41/60/46 |
| 14 | 974636100200 | 200 | PN16 | 338.79 | 154.76 | 121 | 19.42 | 3.28 | 6 | 41/60/46 |
| 15 | 974636700225 | 225 | PN10 | 358.14 | 161.78 | 124 | 14 | 2.95 | 6 | 50/60/50 |
| 16 | 974636100225 | 225 | PN16 | 358.14 | 161.78 | 124 | 21.6 | 4.33 | 6 | 50/60/50 |
| 17 | 974636700250 | 250 | PN10 | 373.49 | 166.66 | 127 | 15.4 | 3.75 | 4 | 50/60/50 |
| 18 | 974636100250 | 250 | PN16 | 373.49 | 166.66 | 127 | 22.8 | 5.53 | 4 | 50/60/50 |
| 19 | 974636700280 | 280 | PN10 | 381.51 | 165.34 | 120 | 16.7 | 4.65 | 1 | 50/60/50 |
| 20 | 974636100280 | 280 | PN16 | 381.51 | 165.34 | 120 | 25.5 | 6.89 | 1 | 50/60/50 |
| 21 | 974636700315 | 315 | PN10 | 459.73 | 204.16 | 151.7 | 20.4 | 7.28 | 1 | 50/60/50 |
| 22 | 974636100315 | 315 | PN16 | 459.73 | 204.16 | 151.7 | 30 | 10.71 | 1 | 50/60/50 |
