ELBOW °11
Elbow °11 is a specially angled electrofusion elbow designed to precisely change the pipe direction in high density polyethylene (PE100) pipelines. The 11 degree angle, which is not among the standard elbow angles, is used in project-specific routing and pipeline designs. It can be assembled by electrofusion or butt welding method and provides safe, leak-proof and durable connections in piping systems.
Elbow °11 – Special Angle Elbow Fitting for HDPE Pipelines
Areas of Use:
-
Water distribution and waste water lines
-
Natural gas infrastructure projects
-
Industrial liquid transportation systems
-
Agricultural irrigation lines
-
Precise direction change for specific project and site needs
Advantages:
-
Precise orientation with project-specific 11° angle
-
High durability thanks to PE100 raw material
-
Easy assembly by electrofusion and butt welding
-
Leak-proof and long-lasting connection
-
Resistant to chemical and environmental influences
-
Reliable performance in harsh field conditions
Why Choose Elbow °11?
In projects that require special orientation other than standard angles, Elbow °11 allows the pipeline to be arranged at the desired angle. This ensures efficient and trouble-free operation of the pipeline.
Technical Specifications:
-
Material: PE100
-
Angle 11°
-
Connection Type: Electrofusion / Butt welding
-
Diameter range: Can be customized according to the project
-
Pressure Class: PN10 / PN16
-
Color: Black (standard)

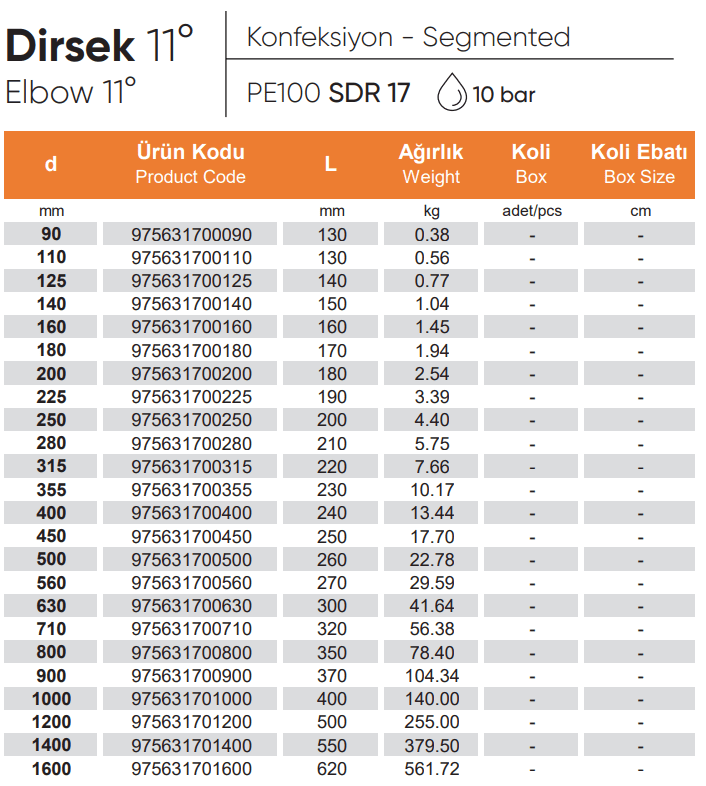

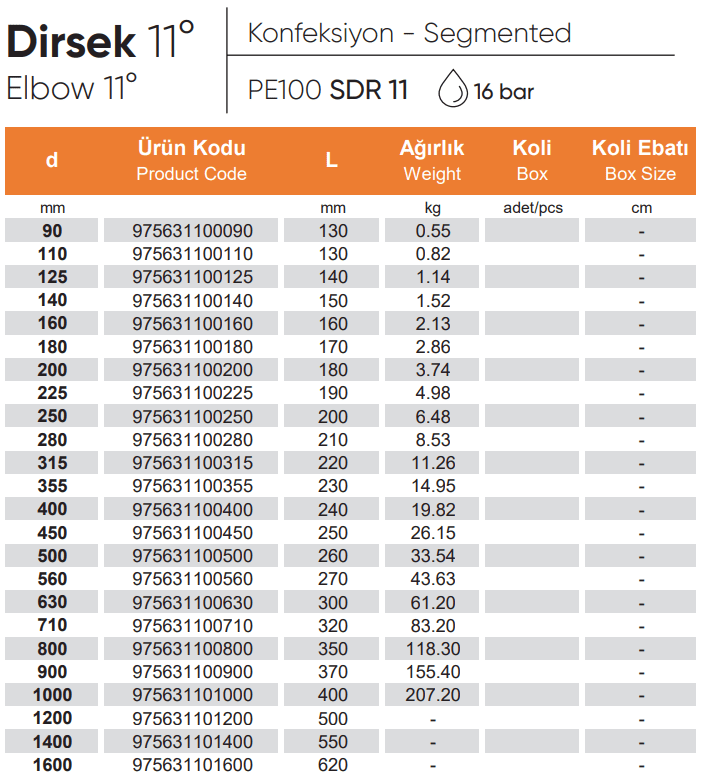

| SIRA | ÜRÜN KODU | ÇAP d [mm] | BASINÇ [bar] | L [mm] | e [mm] | AĞIRLIK [kg] | KOLİ ADEDİ | KOLİ EBATI |
|---|---|---|---|---|---|---|---|---|
| SEQ | PRODUCT CODE | SIZE d [mm] | PRESSURE [bar] | L [mm] | e [mm] | WEIGHT [kg] | IN A PARCEL | PCS PRICE |
| 1 | 975631700090 | 90 | PN10 | 130 | 5.4 | 0.38 | - | - |
| 2 | 975631100090 | 90 | PN16 | 130 | 5.4 | 0.38 | - | - |
| 3 | 975631700110 | 110 | PN10 | 130 | 6.6 | 0.56 | - | - |
| 4 | 975631100110 | 110 | PN16 | 130 | 6.6 | 0.56 | - | - |
| 5 | 975631700125 | 125 | PN10 | 140 | 7.4 | 0.77 | - | - |
| 6 | 975631100125 | 125 | PN16 | 140 | 7.4 | 0.77 | - | - |
| 7 | 975631700140 | 140 | PN10 | 150 | 8.3 | 1.04 | - | - |
| 8 | 975631100140 | 140 | PN16 | 150 | 8.3 | 1.04 | - | - |
| 9 | 975631700160 | 160 | PN10 | 160 | 9.5 | 1.45 | - | - |
| 10 | 975631100160 | 160 | PN16 | 160 | 9.5 | 1.45 | - | - |
| 11 | 975631700180 | 180 | PN10 | 170 | 10.7 | 1.94 | - | - |
| 12 | 975631100180 | 180 | PN16 | 170 | 10.7 | 1.94 | - | - |
| 13 | 975631700200 | 200 | PN10 | 180 | 11.9 | 2.54 | - | - |
| 14 | 975631100200 | 200 | PN16 | 180 | 11.9 | 2.54 | - | - |
| 15 | 975631700225 | 225 | PN10 | 190 | 13.4 | 3.39 | - | - |
| 16 | 975631100225 | 225 | PN16 | 190 | 13.4 | 3.39 | - | - |
| 17 | 975631700250 | 250 | PN10 | 200 | 14.8 | 4.4 | - | - |
| 18 | 975631100250 | 250 | PN16 | 200 | 14.8 | 4.4 | - | - |
| 19 | 975631700280 | 280 | PN10 | 210 | 16.6 | 5.75 | - | - |
| 20 | 975631100280 | 280 | PN16 | 210 | 16.6 | 5.75 | - | - |
| 21 | 975631700315 | 315 | PN10 | 220 | 18.7 | 7.66 | - | - |
| 22 | 975631100315 | 315 | PN16 | 220 | 18.7 | 7.66 | - | - |
| 23 | 975631700355 | 355 | PN10 | 230 | 21.1 | 10.17 | - | - |
| 24 | 975631100355 | 355 | PN16 | 230 | 21.1 | 10.17 | - | - |
| 25 | 975631700400 | 400 | PN10 | 240 | 23.7 | 13.44 | - | - |
| 26 | 975631100400 | 400 | PN16 | 240 | 23.7 | 13.44 | - | - |
| 27 | 975631700450 | 450 | PN10 | 250 | 26.7 | 17.7 | - | - |
| 28 | 975631100450 | 450 | PN16 | 250 | 26.7 | 17.7 | - | - |
| 29 | 975631700500 | 500 | PN10 | 260 | 29.7 | 22.78 | - | - |
| 30 | 975631100500 | 500 | PN16 | 260 | 29.7 | 22.78 | - | - |
| 31 | 975631700560 | 560 | PN10 | 270 | 33.2 | 29.59 | - | - |
| 32 | 975631100560 | 560 | PN16 | 270 | 33.2 | 29.59 | - | - |
| 33 | 975631700630 | 630 | PN10 | 300 | 37.4 | 41.64 | - | - |
| 34 | 975631100630 | 630 | PN16 | 300 | 37.4 | 41.64 | - | - |
| 35 | 975631700710 | 710 | PN10 | 320 | 42.1 | 56.38 | - | - |
| 36 | 975631100710 | 710 | PN16 | 320 | 42.1 | 56.38 | - | - |
| 37 | 975631700800 | 800 | PN10 | 350 | 47.4 | 78.4 | - | - |
| 38 | 975631100800 | 800 | PN16 | 350 | 47.4 | 78.4 | - | - |
| 39 | 975631700900 | 900 | PN10 | 370 | 53.3 | 104.34 | - | - |
| 40 | 975631100900 | 900 | PN16 | 370 | 53.3 | 104.34 | - | - |
| 41 | 975631701000 | 1000 | PN10 | 400 | 59.3 | 140 | - | - |
| 42 | 975631101000 | 1000 | PN16 | 400 | 59.3 | 140 | - | - |
| 43 | 975631701200 | 1200 | PN10 | 500 | 71.1 | 255 | - | - |
| 44 | 975631101200 | 1200 | PN16 | 500 | 71.1 | 255 | - | - |
| 45 | 975631701400 | 1400 | PN10 | 550 | 83 | 379.5 | - | - |
| 46 | 975631101400 | 1400 | PN16 | 550 | 83 | 379.5 | - | - |
| 47 | 975631701600 | 1600 | PN10 | 620 | 94.8 | 561.72 | - | - |
| 48 | 975631101600 | 1600 | PN16 | 620 | 94.8 | 561.72 | - | - |
