İNEGAL TE

HDPE İnegal Te, HDPE (Yüksek Yoğunluklu Polietilen – PE100) boru sistemlerinde iki ucu aynı, üçüncü çıkışı daha küçük çapa sahip olan eşit olmayan (inegal) tee bağlantı elemanıdır. Ana hat üzerinden tali bir hatta geçiş yapılması gerektiğinde kullanılır. Elektrofüzyon veya alın kaynağı ile kolayca monte edilir ve uzun ömürlü, sızdırmaz bir bağlantı sağlar.

Açıklama

HDPE İnegal Te – Farklı Çaplı Hatlar Arasında Güvenilir Geçiş Çözümü

Ürün Açıklaması:
Farklı çap kombinasyonlarında üretilebilen HDPE İnegal Te, hem içme suyu hem de doğalgaz sistemleri gibi basınca dayanıklı altyapı projelerinde yüksek performans sunar. Kimyasallara, dış hava koşullarına ve darbelere karşı dirençlidir.

Kullanım Alanları:

Şebeke içme suyu sistemleri
Doğalgaz taşıma hatları
Endüstriyel sıvı ve gaz taşıma projeleri
Atık su ve drenaj sistemleri
Tarımsal sulama hatları
Hatlardan vana, sayaç veya servis çıkışı alınması gereken noktalar

Avantajları:

Farklı çaplar arasında geçiş imkânı
Sızdırmaz ve güçlü kaynak bağlantısı
Elektrofüzyon ve alın kaynak uyumlu
Hafif, esnek ve kolay taşınabilir yapı
Kimyasal maddelere, UV ışınlarına ve darbelere karşı dayanıklılık
Uzun ömürlü, bakım gerektirmeyen çözüm
Projeye özel üretim seçenekleri

Teknik Özellikler:

Malzeme: PE100 – Yüksek Yoğunluklu Polietilen
Üretim Tipi: Enjeksiyon veya konfeksiyon
Bağlantı Yöntemi: Elektrofüzyon veya alın kaynak
Çap Aralığı: Ø20 mm – Ø1200 mm (ana hat), istenen tali çap kombinasyonları
Basınç Sınıfı: PN10 / PN16
Uygunluk: ISO 4427, EN 12201, EN 1555

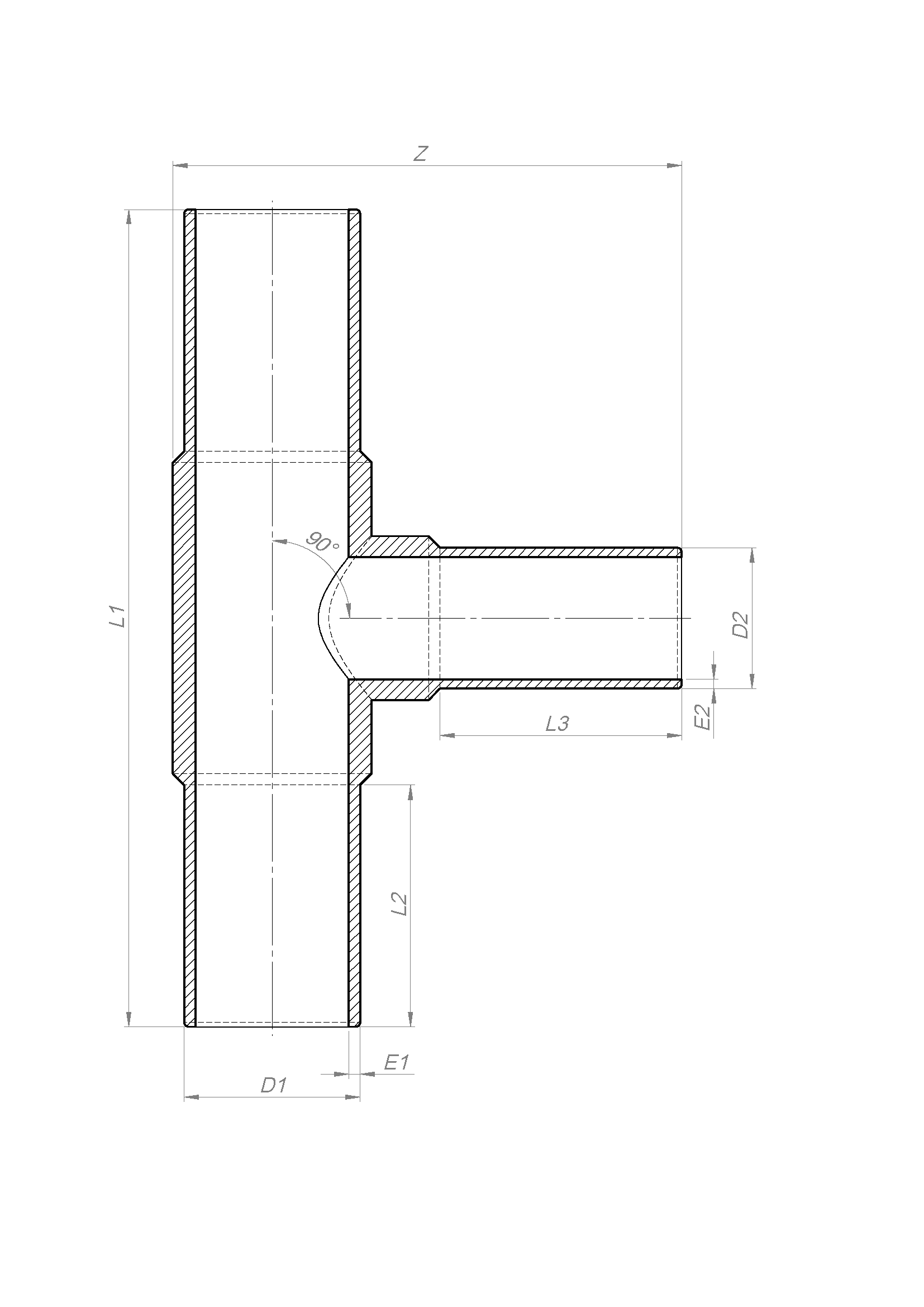

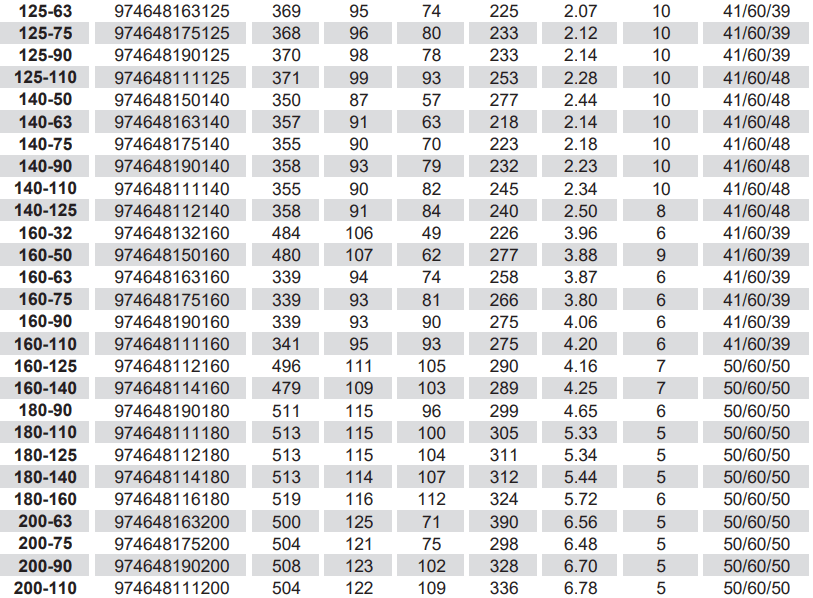

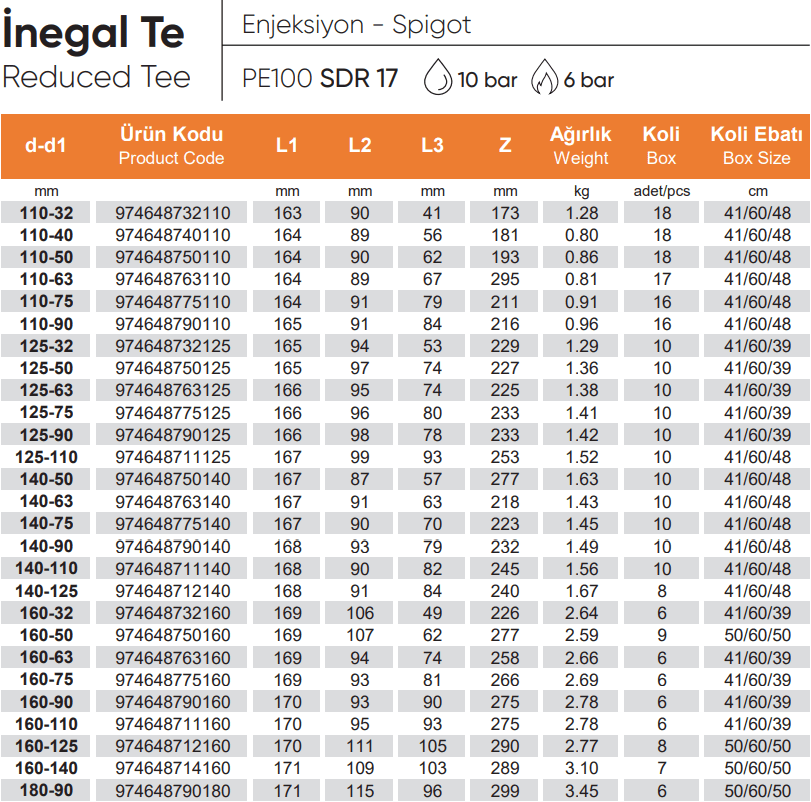

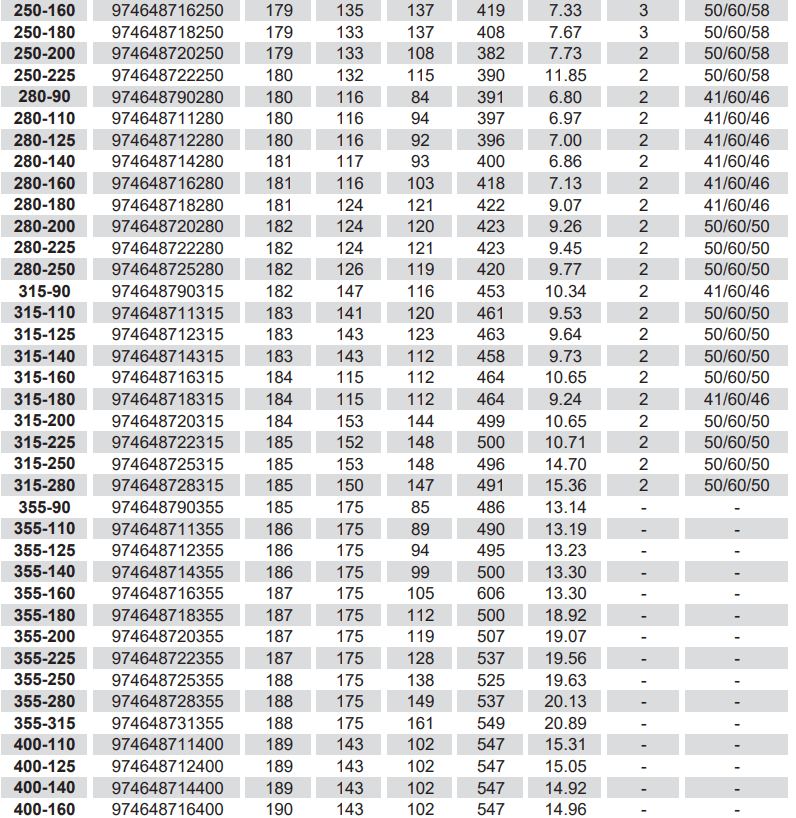

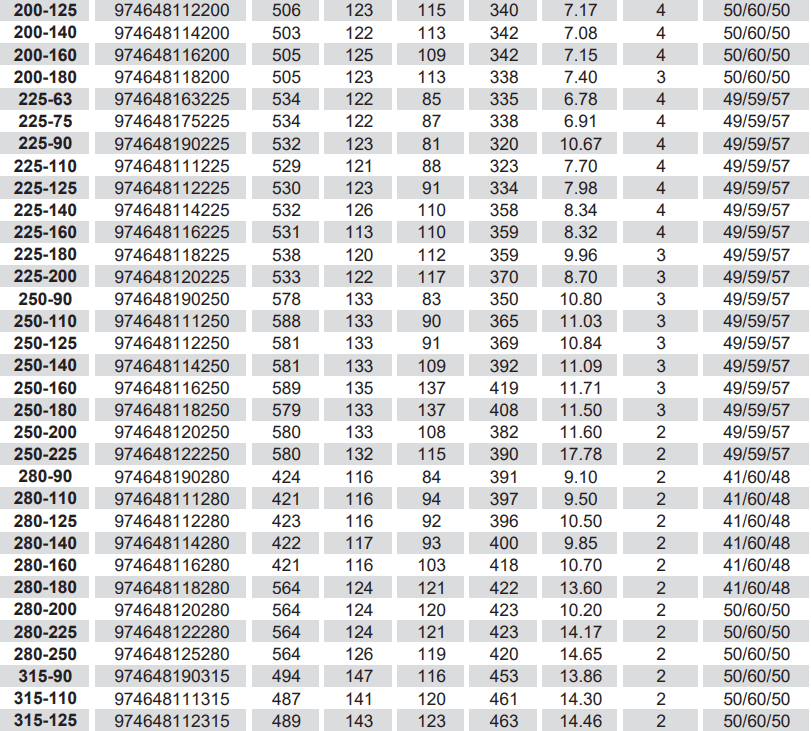

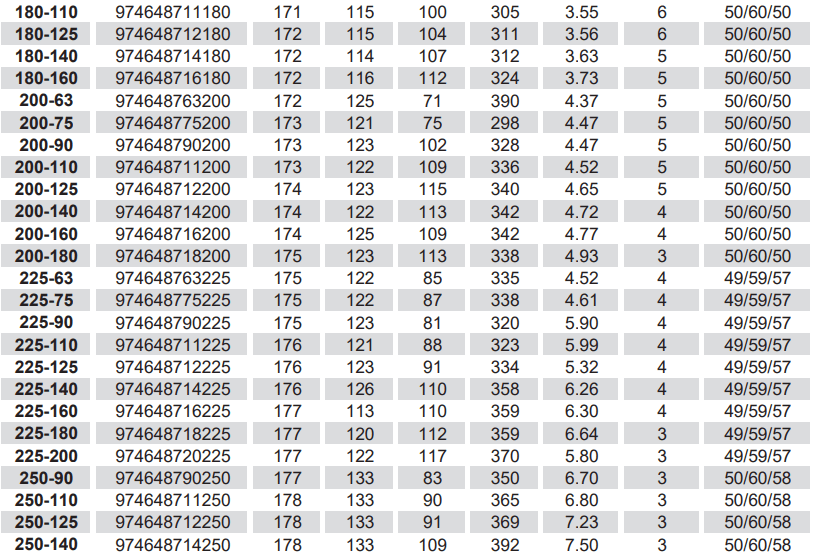

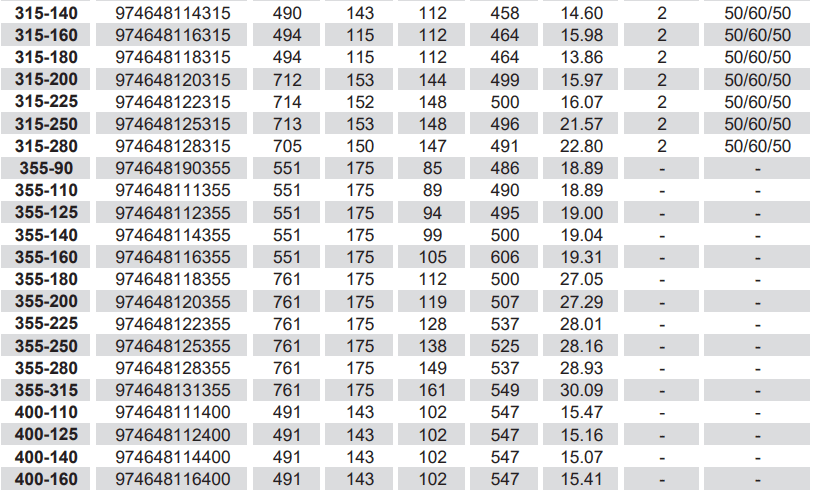

SIRA	ÜRÜN KODU	ÇAP d/d1 [mm]	BASINÇ [bar]	L [mm]	z [mm]	L1 [mm]	L2 [mm]	e [mm]	e1 [mm]	AĞIRLIK [kg]	KOLİ ADEDİ	KOLİ EBATI
SEQ	PRODUCT CODE	SIZE d/d1 [mm]	PRESSURE [bar]	L [mm]	z [mm]	L1 [mm]	L2 [mm]	e [mm]	e1 [mm]	WEIGHT [kg]	IN A PARCEL	PCS PRICE
1	974648703240	40/32	PN10	188.7	116.2	55.2	56.7	2.6	2.1	0.1	70	41/60/31
2	974648103240	40/32	PN16	188.7	116.2	55.2	56.7	4.1	3	0.15	70	41/60/31
3	974648703250	50/32	PN10	209.8	118.3	59.7	54.5	3.1	2.2	0.15	56	41/60/31
4	974648103250	50/32	PN16	209.8	118.3	59.7	54.5	4.7	3	0.23	56	41/60/31
5	974648704050	50/40	PN10	214.4	128.2	60.9	60.7	3.2	2.5	0.05	56	41/60/31
6	974648104050	50/40	PN16	214.4	128.2	60.9	60.7	4.9	4	0.25	56	41/60/31
7	974648702563	63/25	PN10	241.9	114.3	64.6	40.5	4	2	0.24	45	41/60/31
8	974648102563	63/25	PN16	241.9	114.3	64.6	40.5	6.4	2.7	0.354	45	41/60/31
9	974648703263	63/32	PN10	247.8	142	67.5	57.9	4.1	2.1	0.26	36	41/60/31
10	974648103263	63/32	PN16	247.8	142	67.5	57.9	6.2	3.1	0.392	36	41/60/31
11	974648704063	63/40	PN10	247	138.8	65.8	57.2	4.1	2.5	0.07	36	41/60/31
12	974648104063	63/40	PN16	247	138.8	65.8	57.2	6.3	4	0.37	36	41/60/31
13	974648705063	63/50	PN10	243.8	149.3	64.5	59.9	4.2	3.2	0.28	35	41/60/31
14	974648105063	63/50	PN16	243.8	149.3	64.5	59.9	6.3	4.7	0.42	35	41/60/31
15	974648703275	75/32	PN10	274	149	68.5	50.25	4.7	2.3	0.42	25	41/60/31
16	974648103275	75/32	PN16	274	149	68.5	50.25	7.5	3.4	0.625	25	41/60/31
17	974648704075	75/40	PN10	275.4	160.7	69.8	61.2	4.9	2.8	0.43	25	41/60/31
18	974648104075	75/40	PN16	275.4	160.7	69.8	61.2	7.6	4.1	0.642	25	41/60/31
19	974648705075	75/50	PN10	272	162.8	69.3	63.7	5	3.4	0.43	24	41/60/31
20	974648105075	75/50	PN16	272	162.8	69.3	63.7	7.5	5.2	0.644	24	41/60/31
21	974648706375	75/63	PN10	276.8	170	70.3	69.8	5	4.1	0.43	22	41/60/31
22	974648106375	75/63	PN16	276.8	170	70.3	69.8	7.6	6.63	0.65	22	41/60/31
23	974648702590	90/25	PN10	290.5	156.4	81	38	5.6	2	0.57	21	41/60/31
24	974648102590	90/25	PN16	290.5	156.4	81	38	9.1	2.7	0.854	21	41/60/31
25	974648703290	90/32	PN10	286.7	160.5	78.9	43.2	5.8	2.3	0.56	20	41/60/31
26	974648103290	90/32	PN16	286.7	160.5	78.9	43.2	9.2	3.4	0.84	20	41/60/31
27	974648704090	90/40	PN10	288.3	162.8	78.3	52.3	5.8	2.6	0.57	20	41/60/31
28	974648104090	90/40	PN16	288.3	162.8	78.3	52.3	9	4.2	0.854	20	41/60/31
29	974648705090	90/50	PN10	288.6	171.5	79.2	60.8	5.9	3.2	0.59	18	41/60/31
30	974648105090	90/50	PN16	288.6	171.5	79.2	60.8	9.2	5.2	0.878	18	41/60/31
31	974648706390	90/63	PN10	291.8	183.5	80.4	68.2	6	4.2	0.639	16	41/60/31
32	974648106390	90/63	PN16	291.8	183.5	80.4	68.2	9.1	6.3	0.958	16	41/60/31
33	974648707590	90/75	PN10	291.3	184.2	82.9	72.3	6	4.9	0.65	16	41/60/31
34	974648107590	90/75	PN16	291.3	184.2	82.9	72.3	9.2	7.2	0.975	16	41/60/31
35	974648732110	110/32	PN10	342.1	172.5	90.3	41.3	6.6	2.3	1.28	20	41/60/46
36	974648132110	110/32	PN16	342.1	172.5	90.3	41.3	11.1	3.2	1.92	20	41/60/46
37	974648740110	110/40	PN10	335.7	180.5	88.7	56	6.9	2.8	0.8	18	41/60/46
38	974648140110	110/40	PN16	335.7	180.5	88.7	56	10	4.1	1.196	18	41/60/46
39	974648750110	110/50	PN10	343.8	192.8	90.4	62	7	3.3	0.86	18	41/60/46
40	974648150110	110/50	PN16	343.8	192.8	90.4	62	10.1	5.1	1.29	18	41/60/46
41	974648763110	110/63	PN10	335.3	294.8	88.7	67	7	4.2	0.81	17	41/60/46
42	974648163110	110/63	PN16	335.3	294.8	88.7	67	10.2	6.4	1.22	17	41/60/46
43	974648775110	110/75	PN10	343.4	211	90.6	79.1	7.1	5	0.91	16	41/60/46
44	974648175110	110/75	PN16	343.4	211	90.6	79.1	10.3	7.5	1.364	16	41/60/46
45	974648790110	110/90	PN10	342.7	216.3	91	83.9	7.2	6	0.96	15	41/60/46
46	974648190110	110/90	PN16	342.7	216.3	91	83.9	10.5	8.6	1.44	15	41/60/46
47	974648732125	125/32	PN10	365	229.4	93.85	53.3	7.6	2.2	1.29	12	41/60/46
48	974648132125	125/32	PN16	365	229.4	93.85	53.3	12.7	3.9	1.93	12	41/60/46
49	974648750125	125/50	PN10	367.7	227	96.9	73.7	7.8	3.4	1.36	11	41/60/46
50	974648150125	125/50	PN16	367.7	227	96.9	73.7	12.6	4.4	2.034	11	41/60/46
51	974648763125	125/63	PN10	369.1	224.6	94.5	74.1	8	4.2	1.38	10	41/60/46
52	974648163125	125/63	PN16	369.1	224.6	94.5	74.1	12.3	5.9	2.07	10	41/60/46
53	974648775125	125/75	PN10	367.5	233	95.6	80	7.6	5	1.41	10	41/60/46
54	974648175125	125/75	PN16	367.5	233	95.6	80	12.4	7.6	2.12	10	41/60/46
55	974648790125	125/90	PN10	370.4	232.6	97.6	78.1	7.8	5.9	1.42	10	41/60/46
56	974648190125	125/90	PN16	370.4	232.6	97.6	78.1	12.3	8.3	2.136	10	41/60/46
57	974648711125	125/110	PN10	370.7	252.7	99	93	8	6.8	1.52	10	41/60/46
58	974648111125	125/110	PN16	370.7	252.7	99	93	12.6	10.8	2.28	10	41/60/46
59	974648750140	140/50	PN10	350	277	87	57	8.5	3.4	1.63	10	41/60/46
60	974648150140	140/50	PN16	350	277	87	57	13	5	2.44	10	41/60/46
61	974648763140	140/63	PN10	357.2	217.7	91.45	63	8.6	4.3	1.43	10	41/60/46
62	974648163140	140/63	PN16	357.2	217.7	91.45	63	13.7	6.2	2.14	10	41/60/46
63	974648775140	140/75	PN10	355.2	222.8	89.5	70	8.6	5.1	1.45	10	41/60/46
64	974648175140	140/75	PN16	355.2	222.8	89.5	70	13.2	6.9	2.18	10	41/60/46
65	974648790140	140/90	PN10	358.1	232.2	92.5	79.2	8.5	6	1.49	10	41/60/46
66	974648190140	140/90	PN16	358.1	232.2	92.5	79.2	13.3	8.8	2.232	10	41/60/46
67	974648711140	140/110	PN10	354.5	244.7	89.7	81.9	8.6	7.2	1.56	10	41/60/46
68	974648111140	140/110	PN16	354.5	244.7	89.7	81.9	12.9	10	2.34	10	41/60/46
69	974648712140	140/125	PN10	357.8	240.4	90.5	83.8	8.6	8	1.67	8	41/60/46
70	974648112140	140/125	PN16	357.8	240.4	90.5	83.8	13.2	11.9	2.5	8	41/60/46
71	974648732160	160/32	PN10	484	226.1	106	49	9.8	2.3	2.64	9	50/60/50
72	974648132160	160/32	PN16	484	226.1	106	49	14.7	3.4	3.96	9	50/60/50
73	974648750160	160/50	PN10	480	276.5	106.85	62.35	10	3.4	2.59	9	50/60/50
74	974648150160	160/50	PN16	480	276.5	106.85	62.35	14.6	5.2	3.88	9	50/60/50
75	974648763160	160/63	PN10	338.8	258.2	93.5	74.3	10	4.2	2.66	9	50/60/50
76	974648163160	160/63	PN16	338.8	258.2	93.5	74.3	14.7	5.8	3.87	9	50/60/50
77	974648775160	160/75	PN10	339.1	265.7	93	81	10.2	5.1	2.692	8	50/60/50
78	974648175160	160/75	PN16	339.1	265.7	93	81	15	6.8	3.8	8	50/60/50
79	974648790160	160/90	PN10	339	274.5	93.4	90	10.5	5.8	2.784	8	50/60/50
80	974648190160	160/90	PN16	339	274.5	93.4	90	15.5	8.7	4.06	8	50/60/50
81	974648711160	160/110	PN10	341	275	95	92.5	10.3	6.9	2.78	8	50/60/50
82	974648111160	160/110	PN16	341	275	95	92.5	14.6	11.1	4.2	8	50/60/50
83	974648712160	160/125	PN10	496	290.2	111	105.36	10.2	7.6	3.24	8	50/60/50
84	974648112160	160/125	PN16	496	290.2	111	105.36	15.1	12.3	4.16	8	50/60/50
85	974648714160	160/140	PN10	478.9	289.2	109	102.6	10.4	9	3.1	7	50/60/50
86	974648114160	160/140	PN16	478.9	289.2	109	102.6	16	13	4.3	7	50/60/50
87	974648790180	180/90	PN10	511.4	299.2	114.5	96.2	11	5.8	3.45	5	50/60/50
88	974648190180	180/90	PN16	511.4	299.2	114.5	96.2	16.4	8.8	5.18	5	50/60/50
89	974648711180	180/110	PN10	513.2	304.8	114.7	99.8	11	7.2	3.55	5	50/60/50
90	974648111180	180/110	PN16	513.2	304.8	114.7	99.8	16.4	10.5	5.33	5	50/60/50
91	974648712180	180/125	PN10	513	311	114.5	103.5	11.2	8	3.56	5	50/60/50
92	974648112180	180/125	PN16	513	311	114.5	103.5	16.5	11.5	5.34	5	50/60/50
93	974648714180	180/140	PN10	512.6	311.5	114	107.3	11.1	8.8	3.63	4	50/60/50
94	974648114180	180/140	PN16	512.6	311.5	114	107.3	16.6	13.6	5.44	4	50/60/50
95	974648716180	180/160	PN10	519	324	116	111.8	11.5	10.2	3.73	4	50/60/50
96	974648116180	180/160	PN16	519	324	116	111.8	16.9	16	5.72	4	50/60/50
97	974648763200	200/63	PN10	500	390	125.25	71.4	12	4.2	4.37	5	50/60/50
98	974648163200	200/63	PN16	500	390	125.25	71.4	19.1	6	6.56	5	50/60/50
99	974648775200	200/75	PN10	504.3	297.8	121.3	75.3	12.2	5	4.47	5	50/60/50
100	974648175200	200/75	PN16	504.3	297.8	121.3	75.3	19.6	7	6.48	5	50/60/50
101	974648790200	200/90	PN10	507.5	328	123.15	101.6	12	5.8	5	5	50/60/50
102	974648190200	200/90	PN16	507.5	328	123.15	101.6	18.7	8.2	6.7	5	50/60/50
103	974648711200	200/110	PN10	504.4	335.5	121.5	109.2	12.2	6.8	4.52	4	50/60/50
104	974648111200	200/110	PN16	504.4	335.5	121.5	109.2	18.3	10	6.78	4	50/60/50
105	974648712200	200/125	PN10	505.5	340.4	123	114.5	13.2	8.3	5.24	4	50/60/50
106	974648112200	200/125	PN16	505.5	340.4	123	114.5	20.2	11.5	7.165	4	50/60/50
107	974648714200	200/140	PN10	503	342.3	122.4	113	12.5	9	4.72	4	50/60/50
108	974648114200	200/140	PN16	503	342.3	122.4	113	19.6	14	7.08	4	50/60/50
109	974648716200	200/160	PN10	504.7	342	124.6	109.1	12.5	10	4.77	4	50/60/50
110	974648116200	200/160	PN16	504.7	342	124.6	109.1	20.1	16.1	7.15	4	50/60/50
111	974648718200	200/180	PN10	504.5	338.3	122.8	112.5	13	11.6	4.93	3	50/60/50
112	974648118200	200/180	PN16	504.5	338.3	122.8	112.5	20	16.6	7.4	3	50/60/50
113	974648763225	225/63	PN10	534	334.5	122	85	13.5	4.3	4.52	4	50/60/58
114	974648163225	225/63	PN16	534	334.5	122	85	20.9	6	6.78	4	50/60/58
115	974648775225	225/75	PN10	534	337.5	122	87	14	5.1	4.61	4	50/60/58
116	974648175225	225/75	PN16	534	337.5	122	87	21	7.2	6.91	4	50/60/58
117	974648790225	225/90	PN10	532	320	122.6	81	13.6	6	7.11	4	50/60/58
118	974648190225	225/90	PN16	532	320	122.6	81	22.7	9.2	10.67	4	50/60/58
119	974648711225	225/110	PN10	529.1	323	120.9	88	13.5	7.3	5.99	4	50/60/58
120	974648111225	225/110	PN16	529.1	323	120.9	88	21.2	10.8	7.86	4	50/60/58
121	974648712225	225/125	PN10	530	334	122.8	90.8	14.4	8.1	5.32	4	50/60/58
122	974648112225	225/125	PN16	530	334	122.8	90.8	20.5	11.4	7.98	4	50/60/58
123	974648714225	225/140	PN10	532	358	125.6	109.9	13.5	9.3	6.26	4	50/60/58
124	974648114225	225/140	PN16	532	358	125.6	109.9	20.6	12.9	8.34	4	50/60/58
125	974648716225	225/160	PN10	531	359	112.6	109.5	14.6	10.2	5.55	4	50/60/58
126	974648116225	225/160	PN16	531	359	112.6	109.5	20.6	15	8.32	4	50/60/58
127	974648718225	225/180	PN10	538	358.5	120	112	14	11.5	6.64	3	50/60/58
128	974648118225	225/180	PN16	538	358.5	120	112	22.7	16.4	9.96	3	50/60/58
129	974648720225	225/200	PN10	533	370	122.4	117.1	14	12.1	5.8	3	50/60/58
130	974648120225	225/200	PN16	533	370	122.4	117.1	20.8	18.6	8.7	3	50/60/58
131	974648790250	250/90	PN10	578	350	133.4	83.4	14.9	5.8	7.2	3	50/60/58
132	974648190250	250/90	PN16	578	350	133.4	83.4	22.9	8.3	10.8	3	50/60/58
133	974648711250	250/110	PN10	588	365	133	90	16.4	6.7	9.02	3	50/60/58
134	974648111250	250/110	PN16	588	365	133	90	23.2	11	11.03	3	50/60/58
135	974648712250	250/125	PN10	581	368.5	133	91.3	16.4	8.1	7.23	3	50/60/58
136	974648112250	250/125	PN16	581	368.5	133	91.3	24	12.1	10.84	3	50/60/58
137	974648714250	250/140	PN10	581	392	133.3	108.7	16.4	9.3	9.28	3	50/60/58
138	974648114250	250/140	PN16	581	392	133.3	108.7	23.2	13	11.09	3	50/60/58
139	974648716250	250/160	PN10	589	418.5	134.6	136.56	16.3	10.3	7.33	3	50/60/58
140	974648116250	250/160	PN16	589	418.5	134.6	136.56	24.1	14.8	11.71	3	50/60/58
141	974648718250	250/180	PN10	579	408	132.5	136.9	16	11.6	7.67	3	50/60/58
142	974648118250	250/180	PN16	579	408	132.5	136.9	24.36	16.6	11.5	3	50/60/58
143	974648720250	250/200	PN10	580	382	132.8	107.5	16.2	12.8	7.73	2	50/60/58
144	974648120250	250/200	PN16	580	382	132.8	107.5	24.24	18.6	11.6	2	50/60/58
145	974648722250	250/225	PN10	580	390	132	115.1	16.3	14.8	11.85	2	50/60/58
146	974648122250	250/225	PN16	580	390	132	115.1	22.7	21.4	17.78	2	50/60/58
147	974648790280	280/90	PN10	424	391	116.2	83.7	17	6	6.8	2	41/60/46
148	974648190280	280/90	PN16	424	391	116.2	83.7	25.9	9	9.1	2	41/60/46
149	974648711280	280/110	PN10	421	396.5	115.8	93.7	16.7	7.4	6.97	2	41/60/46
150	974648111280	280/110	PN16	421	396.5	115.8	93.7	27.2	10.3	9.62	2	41/60/46
151	974648712280	280/125	PN10	423	396	116	91.7	16.9	8.1	7	2	41/60/46
152	974648112280	280/125	PN16	423	396	116	91.7	27.1	12	10.5	2	41/60/46
153	974648714280	280/140	PN10	422	400	116.5	93	18.4	9	6.86	2	41/60/46
154	974648114280	280/140	PN16	422	400	116.5	93	26	13.4	9.85	2	41/60/46
155	974648716280	280/160	PN10	421	418	116	103.1	17.6	10.2	7.13	2	41/60/46
156	974648116280	280/160	PN16	421	418	116	103.1	25.63	16.1	10.7	2	41/60/46
157	974648718280	280/180	PN10	564	422	123.8	121	18.9	5.9	9.07	2	41/60/46
158	974648118280	280/180	PN16	564	422	123.8	121	30	9.1	13.6	2	41/60/46
159	974648720280	280/200	PN10	564	422.8	124	120	19	7.2	9.26	2	50/60/50
160	974648120280	280/200	PN16	564	422.8	124	120	28.67	11.1	13.89	2	50/60/50
161	974648722280	280/225	PN10	564	423.2	124	121.4	20.2	8.1	9.45	2	50/60/50
162	974648122280	280/225	PN16	564	423.2	124	121.4	29	12.3	14.17	2	50/60/50
163	974648725280	280/250	PN10	564	420	125.9	119.3	2.3	10.1	9.77	2	50/60/50
164	974648125280	280/250	PN16	564	420	125.9	119.3	30.2	13.6	14.65	2	50/60/50
165	974648790315	315/90	PN10	493.8	452.5	146.6	115.8	18.9	5.9	10.34	2	41/60/46
166	974648190315	315/90	PN16	493.8	452.5	146.6	115.8	30	9.1	13.86	2	41/60/46
167	974648711315	315/110	PN10	487	460.5	140.9	119.6	19	7.2	9.53	2	50/60/50
168	974648111315	315/110	PN16	487	460.5	140.9	119.6	28.67	11.1	14.3	2	50/60/50
169	974648712315	315/125	PN10	489	463	142.7	122.6	20.2	8.1	9.64	2	50/60/50
170	974648112315	315/125	PN16	489	463	142.7	122.6	29	12.3	14.46	2	50/60/50
171	974648714315	315/140	PN10	490	457.5	143	111.7	2.3	10.1	9.73	2	50/60/50
172	974648114315	315/140	PN16	490	457.5	143	111.7	30.2	13.6	14.6	2	50/60/50
173	974648716315	315/160	PN10	494	464	114.5	112.1	20.7	12.3	10.65	2	50/60/50
174	974648116315	315/160	PN16	494	464	114.5	112.1	30	14.75	15.98	2	50/60/50
175	974648718315	315/180	PN10	494	464	114.5	112.1	18.9	5.9	9.24	2	41/60/46
176	974648118315	315/180	PN16	494	464	114.5	112.1	30	9.1	13.86	2	41/60/46
177	974648720315	315/200	PN10	712	498.5	152.8	144.2	19	7.2	10.65	2	50/60/50
178	974648120315	315/200	PN16	712	498.5	152.8	144.2	28.67	11.1	15.97	2	50/60/50
179	974648722315	315/225	PN10	714	499.5	152	147.5	20.2	8.1	10.71	2	50/60/50
180	974648122315	315/225	PN16	714	499.5	152	147.5	29	12.3	16.07	2	50/60/50
181	974648725315	315/250	PN10	713	496.3	152.8	148.3	2.3	10.1	14.7	2	50/60/50
182	974648125315	315/250	PN16	713	496.3	152.8	148.3	30.2	13.6	22.05	2	50/60/50
183	974648728315	315/280	PN10	705	491	150	147	20.7	12.3	15.36	2	50/60/50
184	974648128315	315/280	PN16	705	491	150	147	30	14.75	22.8	2	50/60/50

Category HDPE SPİGOT Tags alın kaynaklı inegal te, boru hattı bağlantı parçaları, elektrofüzyon te parçası, farklı çap tee, hdpe inegal te, inegal tee bağlantı, pn16 hdpe tee, servis çıkışı hdpe bağlantı Marka: YILDIZ POLİETİLEN

Recent Posts

MCE İTALYA 2024 FUARINDAYDIK!

BIG 5 DUBAI 2024 FUARINDAYDIK!

AQUA THERM MOSCOW 2025 FUARINDAYDIK!

Get in touch!

İNEGAL TE

FOLLOW US ON:

Recent Posts

MCE İTALYA 2024 FUARINDAYDIK!

BIG 5 DUBAI 2024 FUARINDAYDIK!

AQUA THERM MOSCOW 2025 FUARINDAYDIK!

Get in touch!

İNEGAL TE
